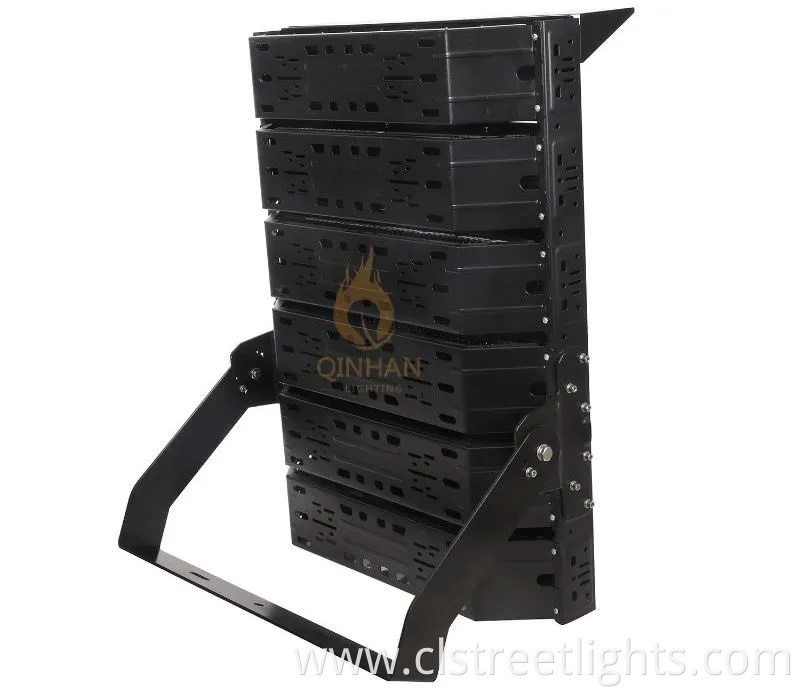

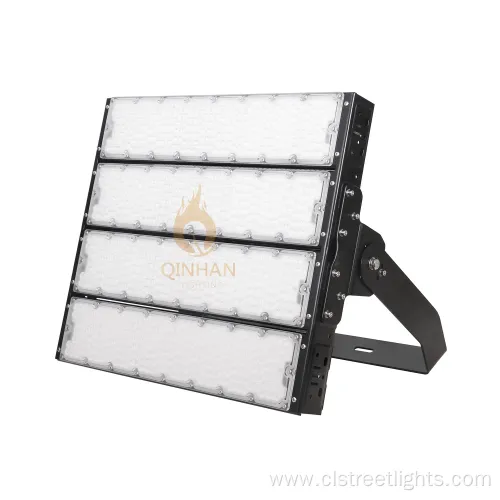

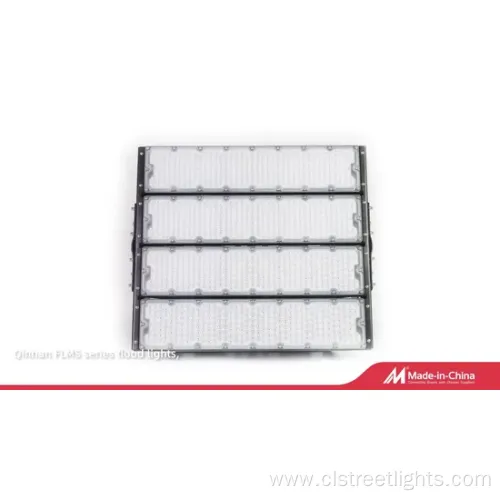

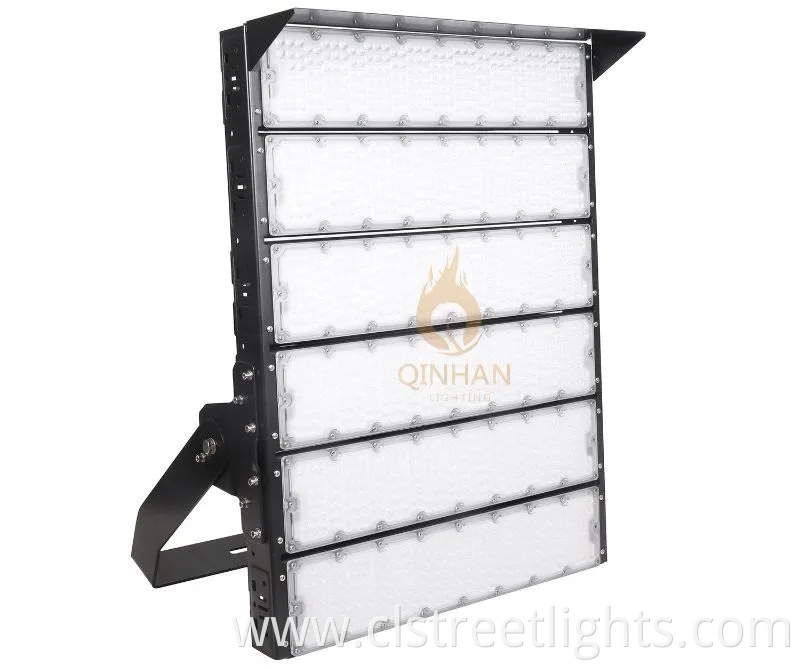

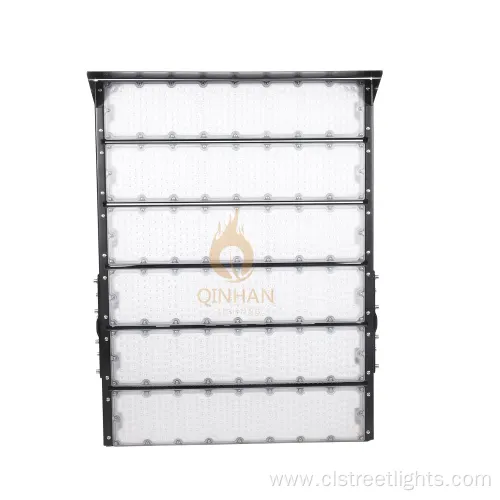

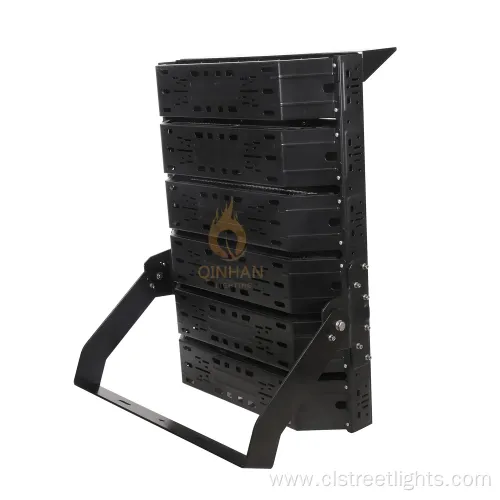

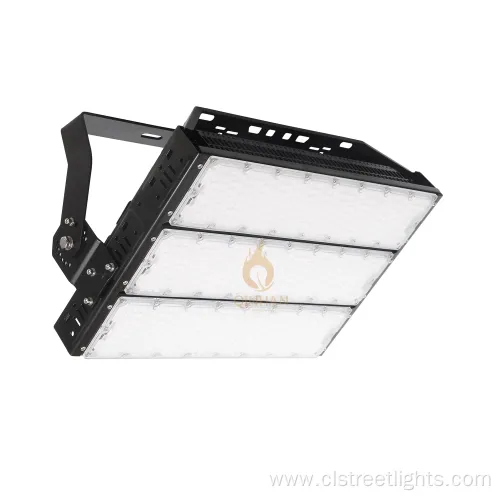

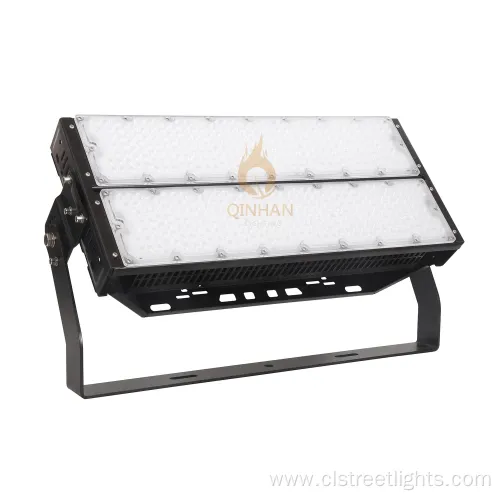

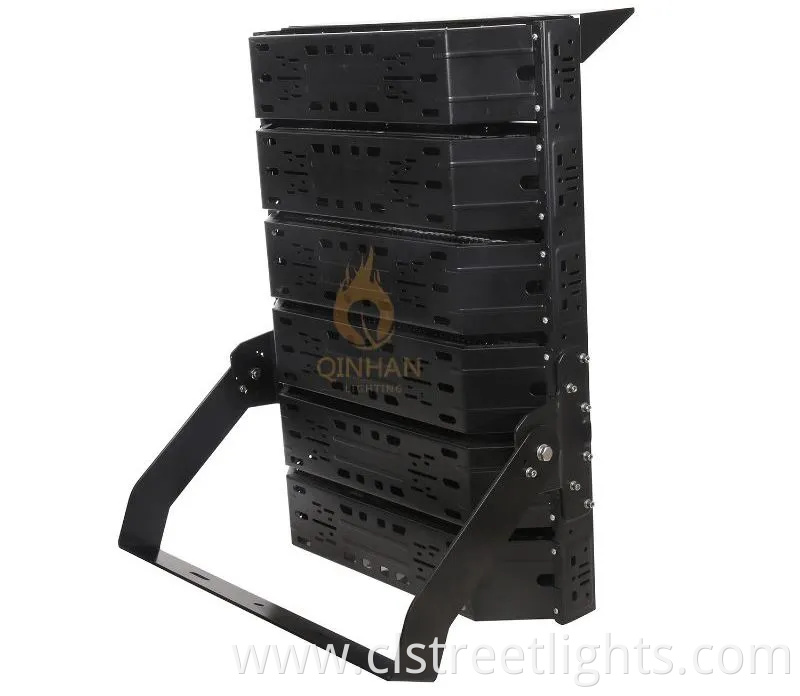

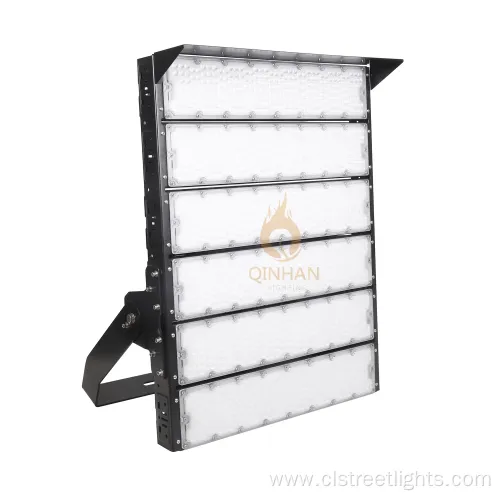

High Mast LED Flood Projector Search Light for Outdoor Stadium and Court Lighting

Basic Info.

• Model NO. QH-FLMS-1500W
• Power 1500W
• Projection Distance >35m
• Application Park, Square, Factory, Garden, Stadium
• IP Rating IP66
• Certification CE, EMC, ETL, FCC, LVD, RoHS, SAA, VDE
• Operating Voltage 85-265V
• Input Voltage 220V
• LED Chips Brand CREE
• Item Name Waterproof 1500W Adjustable LED Flood Light
• Driver Meanwell or Inventronics
• Warranty 5 Years
• Power Factor PF>0.97
• Emitting Color Warm White / Pure White / Cool White
• Replacement 3000W Metal Halide Fixtures
• Body Material Die-Casting Aluminum Housing
• Dimmable 0-10V / PWM / Dali Dimmable Rotating LED Light
• View Angle 20/40/60/49*21/30*70°
• Work Temperature -40ºC~+70ºC
• Color Rendering Index Typical CRI>80, Max CRI>95
• Transport Package Plastic Bag and Foam Into Carton

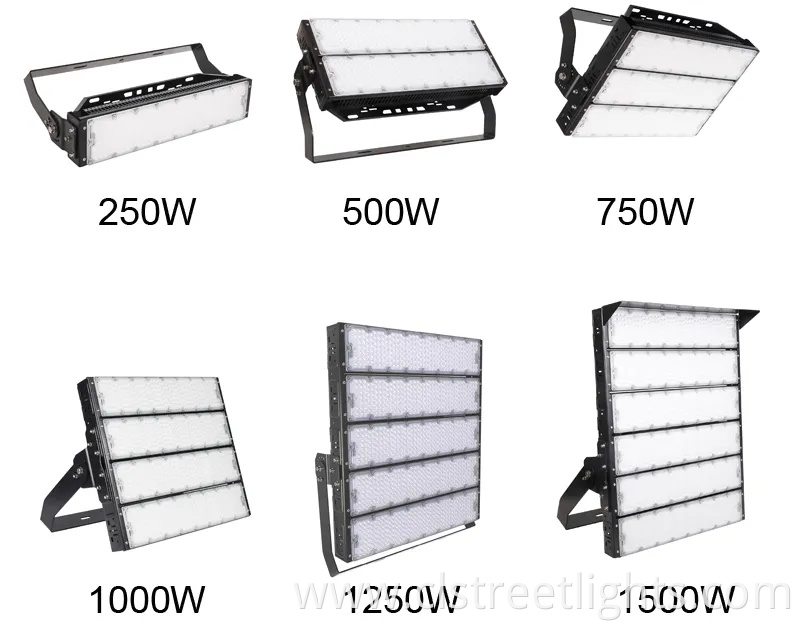

• Specification 500W 750W 1000W 1250W 1500W
• Trademark Qinhan
• Origin Dongguan, China
• HS Code 9405409000
• Production Capacity 10000PCS/Month

Packaging & Delivery

• Package Size 85.00cm * 65.00cm * 20.00cm
• Package Gross Weight 25.000kg

Product Description

DALI DMX 0-10V dimmable high power 1500W outdoor IP66 stadium sport court high mast led flood projector search light AC 110V 240V 347V 480V input voltage

Features of high power led sport stadium high mast flood light:

1. IP66 rated LED flood light.
2. Rotatable modules offering maximum customisation.

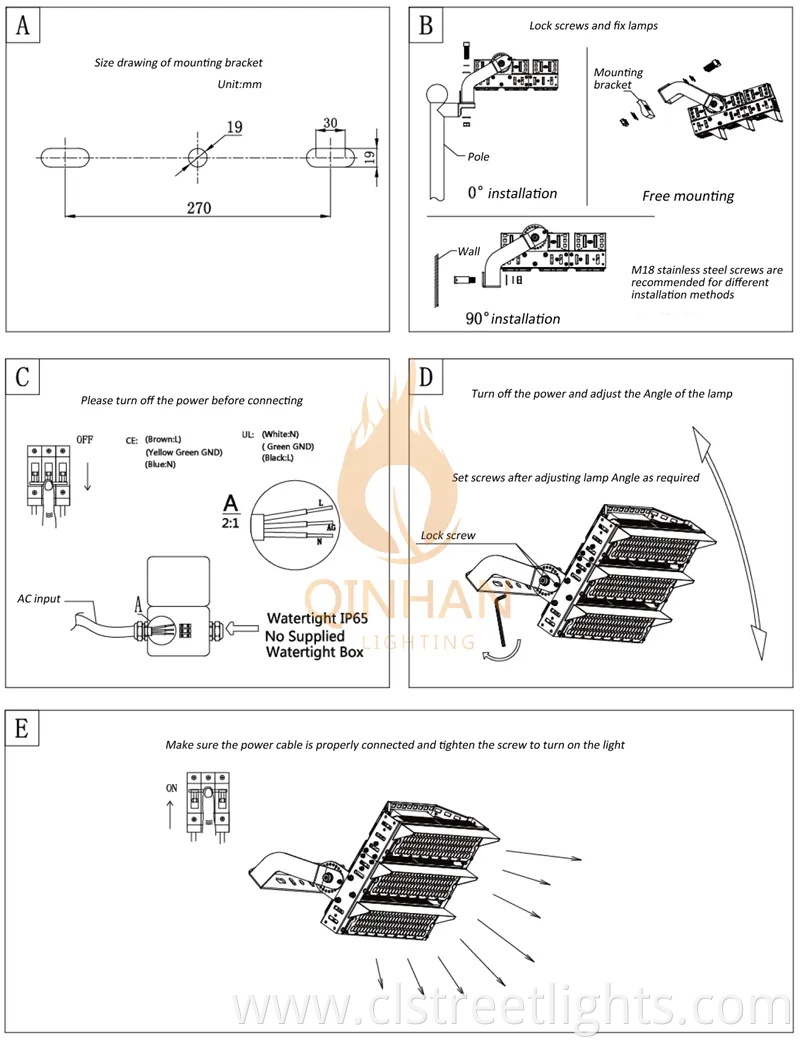

3. Heavy duty stirrup mounting bracket.
4. Multiple optics available, choose from 20°/40°/60°/49*21°/30*70°
5. Can be installed as a floodlight or high bay.
6. With illumination equivalent to 250W-5000 watt metal halide fixtures.
7. You'll enjoy an "instant-on, flicker-free" cold start, and industry-leading 150Lm/W.
8. Protractor scale for easier aiming.
9. 50,000-hour operating life means years of maintenance free operation.
10. Unique design extracts heat from the light source, thereby extending component life and ultimately prolonging the useful life of the fixture.
11. Lightweight design provides easy retrofitting of existing HID installations, along with quick mounting on all new installations.

Datesheet:

Adjustable angel 500-1500W led stadium lamp

GENERAL INFORMATION

• Mounting Module Bracket system
• Operating Temperature -40ºC/+90ºC
• Storage Temperature -40ºC/+90ºC
• Lens Options 8°;20°;40°;60°;90°;P50;P65
• Main Reference Company Standards EN 60598-1; EN60598-2-1; EN62493; EN55015; EN 61000-3-2; EN61000-3-3; EN61547; EN62471 IEC 60598-1:2003;IEC 60598-1:2008; IEC 60598-2-1:1987;IEC 60598-2-3:2002; IEC 60838-1:2004;IEC 60838-2-2:2006; IEC/PR 61341:2010;IEC 61347-1:2007; IEC 61347-2-13:2006;IEC 62031-2008; GB 7000.1; GB 7000.201; GB17743; GB17625.1

ELECTRIC INFORMATION

• Electrical Class Class I
• Norminal Voltage 100-240VAC/100-277VAC/180-528VAC 50Hz/60Hz
• LED Current SMD5050 160mA@24V
• LED Power & Luinous flux 500W 75,000LM 750W 112,500LM 1000W 150,000LM 1250W 187,500LM 1500W 225,000LM
• Power Factor ≥0.97(at full load)
• Flickering Percentage ≤8%;≤3% (optional)
• THD ≤15%
• Driver Brand Meanwell/Moso/Sosen/INVENTRONICS
• Surge protection options (kV) L-N 4KV,L/N-PE 6KV@Meanwell L-N 6KV,L/N-PE 10KV@Moso/Sosen/INVENTRONICS 10kV (optional) with LED signal and thermo fuse to disconnect load at the end of life 20kV (optional) with LED signal and thermo fuse to disconnect load at the end of life
• Control system DALI/1-10v/0-10v/DMX512 dimming, optional microwave induction function
• Mains connection For cable max section 2.5mm2 Outgoing cable H05RN-F 2/3/5 × 1.5mm2 Length on request (optional)

HOUSING AND MATERIALS

• Housing ADC 12 die-casting +AL 1070 pure aluminum
• Optic PC
• Housing Finish Powder spraying surface treatment, corrosion resistance
• Refractor PC UV0
• Standard Colour RAL9017 Black;RAL9007 Gray(optional)
• IP IP66
• Impact Housing Resistance IK08 (5 J) IK09 (optional) (10 J), IK10 (optional) (20 J)
• Impact Lens Resistance IK08 (5 J)
• Vibration Test Compliant with modified IEC 68-2-6 (0.5G), ANSI C136.31 (3G)

OPTICAL INFORMATION

• Led color temperature 3000K,4000K ,5000K ,5700K,6500K
• CRI CRI≥70; CRI≥80(optional); CRI≥90(optional); TLCI is an option available upon request
• LED Brand CREE;Nichia
• Upward light output ratio 0%
• Photobiological safety class IEC 62471, EN 62778 EXEMPT GROUP
• Testing standard LM 79-19, EN 13032-1 (all measurements in ISO17025 accredited laboratory)
• Lifetime of the LED's Tq =45°,>50000h - L70B50

Applications :

square ,park ,port,airport ,shipyard ,container wharf,golf course ,foodball field .ect.

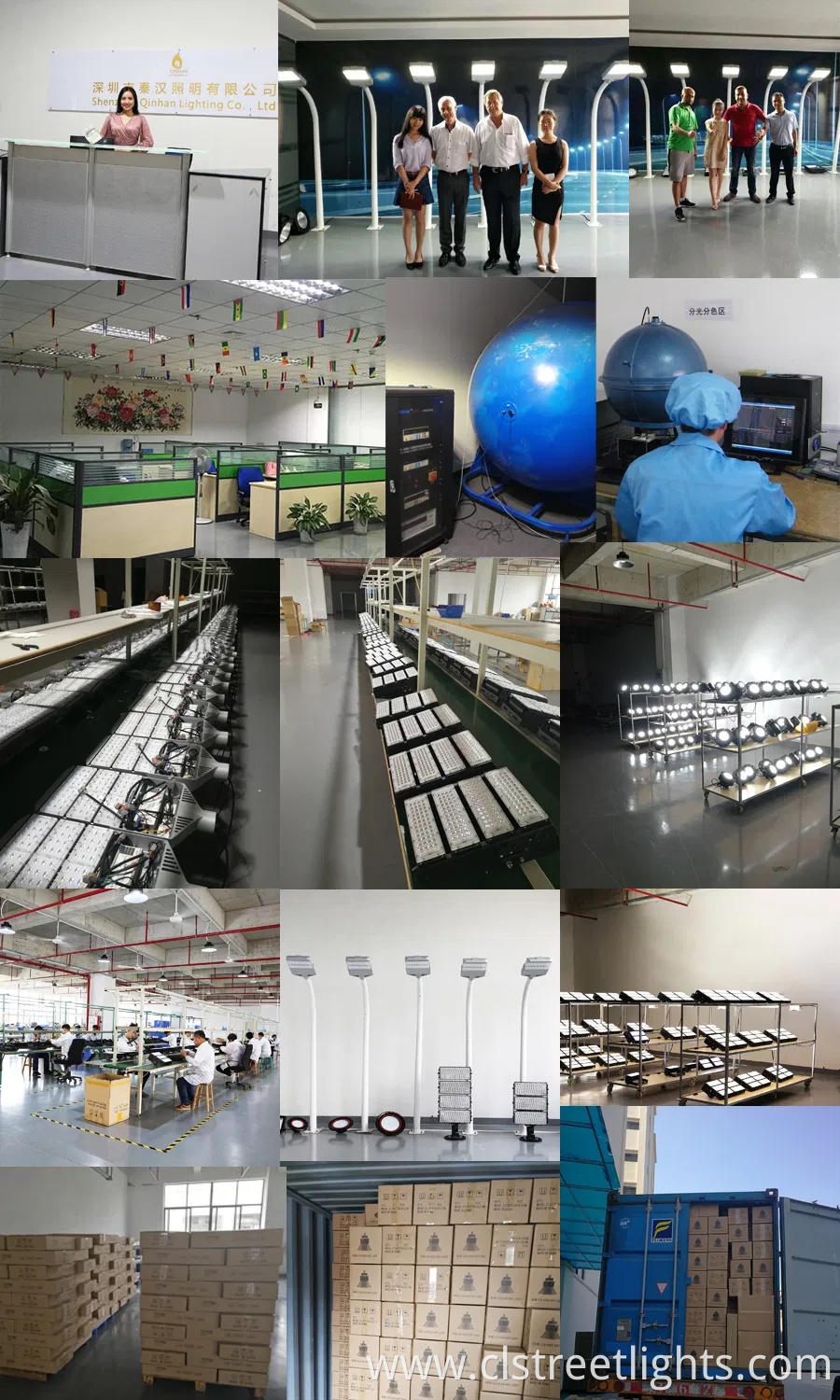

About our company

Shenzhen Qinhan Lighting Co., Limited was founded in 2008, specializing in the production of smart LED lighting, is a China Led lighting supplier who integrates research, development, production, sales and service. We supply a variety of state-of-the-art Led lighting products. Including LED Street Light, LED High Bay Light, LED Flood Light, LED Linear Light, and more.

FAQ:

Can we do our brand? Can you print or emboss our logo on the tank? And our own brand box? A:Yes!

Are you factory? A: Yes, with 10 years warranty.

How does your factory do regarding quality control ? A:Quality is priority. people always attach great importance to quality controlling from the very beginning to the very end.

I want high quality LED flood light, can you do? A: Yes, quality is our culture, we only use best components to build our led flood lights.

How would you do if there are some lights that can't work when I receive the goods? A: Don't worry, we will give you same quantity of good lights for compensation in your next order.

How does your factory do regarding quality control? A: Quality is priority. people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, DLC, ROHS, FCC, ISO900, authentication.

Where is your factory located? How can I visit there? A: Our factory is located in Dongguan City, GuangDong Province, China.

Payment terms

A:T/T, L/C at sight, Western Union
