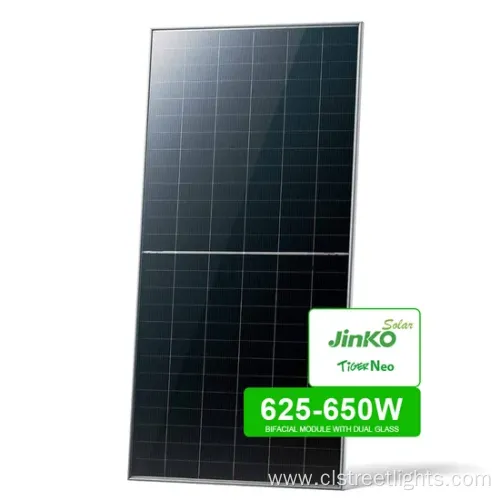

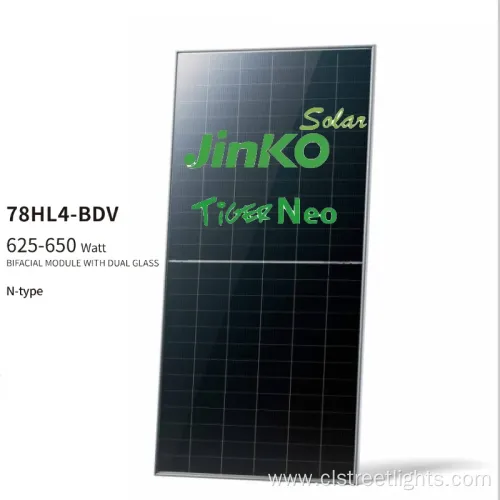

High PV Efficiency 625~650W N-Type Bifacial Solar Panels with TOPCon Technology for Solar Systems
  • High PV Efficiency 625~650W N-Type Bifacial Solar Panels with TOPCon Technology for Solar Systems
  • High PV Efficiency 625~650W N-Type Bifacial Solar Panels with TOPCon Technology for Solar Systems
  • High PV Efficiency 625~650W N-Type Bifacial Solar Panels with TOPCon Technology for Solar Systems
  • High PV Efficiency 625~650W N-Type Bifacial Solar Panels with TOPCon Technology for Solar Systems
  • High PV Efficiency 625~650W N-Type Bifacial Solar Panels with TOPCon Technology for Solar Systems
  • High PV Efficiency 625~650W N-Type Bifacial Solar Panels with TOPCon Technology for Solar Systems
  • High PV Efficiency 625~650W N-Type Bifacial Solar Panels with TOPCon Technology for Solar Systems

High PV Efficiency 625~650W N-Type Bifacial Solar Panels with TOPCon Technology for Solar Systems

Min. Order:
1 Piece/Pieces
Share:
  • Product Description
< >
Overview
Product Attributes

Model NO.: JKM625-650N-78HL4-BDV

Number Of Cells: 144 Cells

Application: Solar System

Condition: New

Certification: EST, ISO, CB, CE

Material: Monocrystalline Silicon

Weight: 34kgs

Packing: 36PCS/Pallets

Loading: 720PCS/ 40'hq Container

Junction Box: IP68 Rated

Frame: Anodized Aluminium Alloy

Output Cables: TUV 1*4.0mm2

Maximum Series: 25A

Transport Package: Pallet

Specification: 2465*1134*30mm

Trademark: Jinko

Origin: China

HS Code: 85414300

Production Capacity: 1000000watt Per Day

Customization: Available

After-sales Service: Support

Warranty: 25 Years

Supply Ability & Additional Information

Supply Ability: 1000000watt Per Day

Packaging & Delivery
Selling Units:
Piece/Pieces

Overview

Basic Info.

  • Model NO. JKM625-650N-78HL4-BDV
  • Number of Cells 144 Cells
  • Application Solar System
  • Condition New
  • Certification EST, ISO, CB, CE
  • Material Monocrystalline Silicon
  • Weight 34kgs
  • Packing 36PCS/Pallets
  • Loading 720PCS/ 40'hq Container
  • Junction Box IP68 Rated
  • Frame Anodized Aluminium Alloy
  • Output Cables TUV 1*4.0mm2
  • Maximum Series 25A
  • Transport Package Pallet
  • Specification 2465*1134*30mm
  • Trademark Jinko
  • Origin China
  • HS Code 85414300
  • Production Capacity 1000000watt Per Day

Packaging & Delivery

  • Package Size 230.00cm * 130.00cm * 110.00cm
  • Package Gross Weight 1200.000kg

Product Description

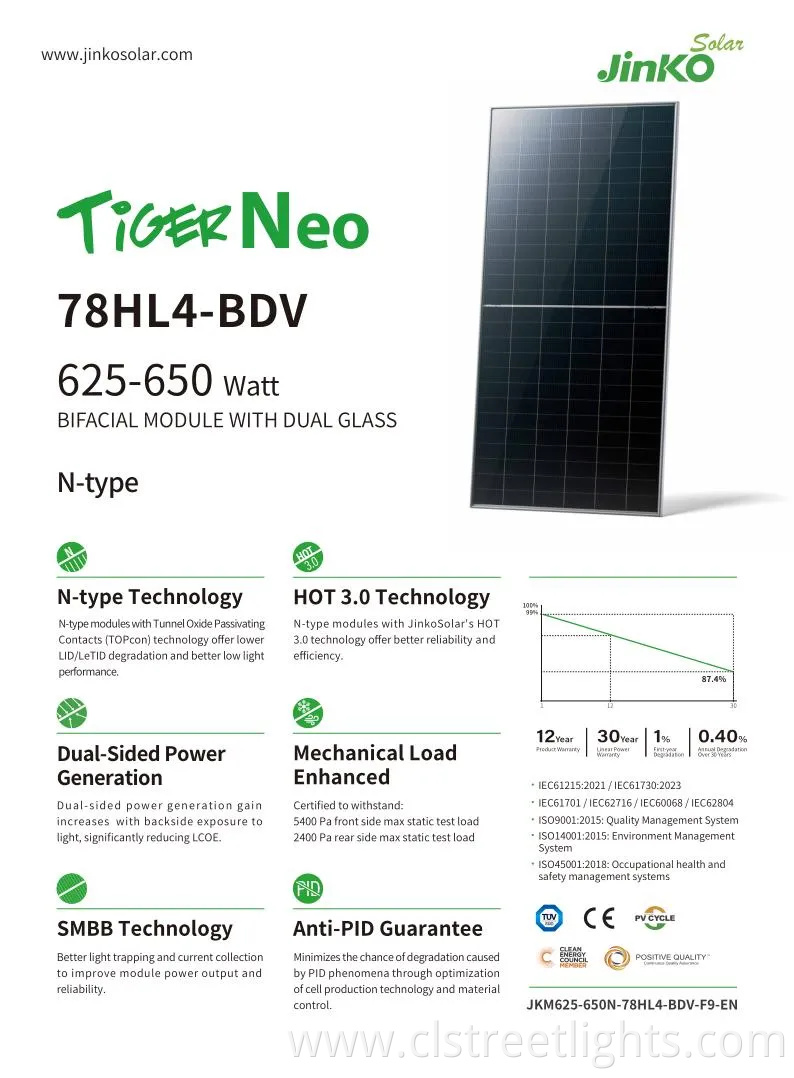

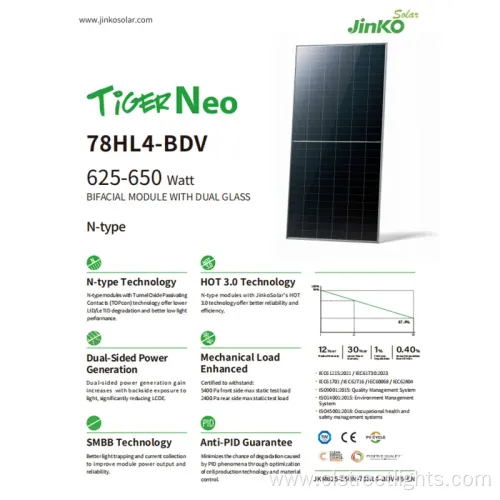

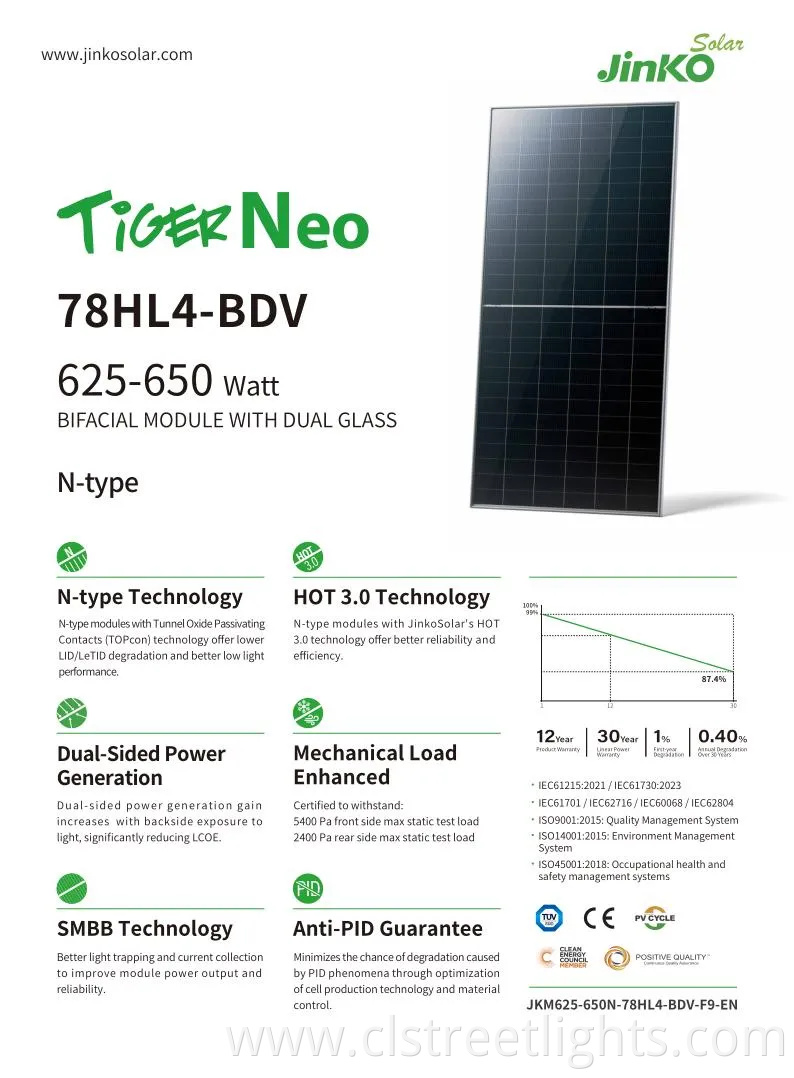

High PV Efficiency 625~650W N Type Bifacial Solar Panels with Topcon Technology for Solar System

Product Parameters

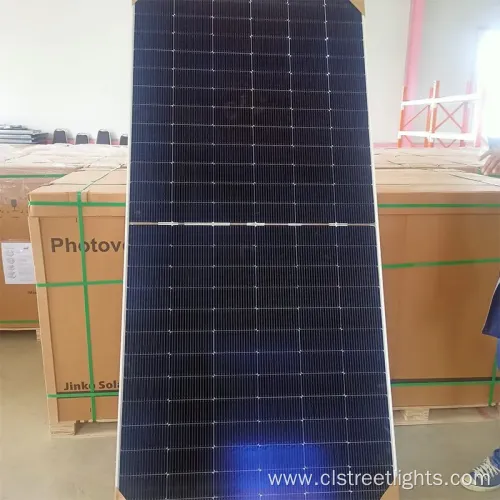

Mechanical Characteristics

  • Cell Type N- type Mono-crystalline
  • No. of cells Dimensions 156(78×2)
  • Dimensions 2465×1134×30 mm
  • Weight 34.0 kg
  • Front Glass 2.0 mm, Anti-reflection Coating
  • Back Glass 2.0 mm, Heat Strengthened Glass
  • Frame Anodized Aluminium Alloy
  • Junction Box IP68 Rated
  • Protection Class Class II
  • IEC Fire Type Class C
  • Connector Type JK03M/MC4/Others
  • Output Cables 4.0 mm2(+): 400 mm , (-): 200 mm or Customized Length

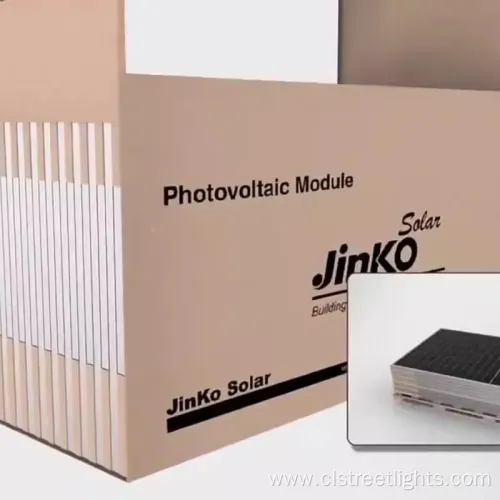

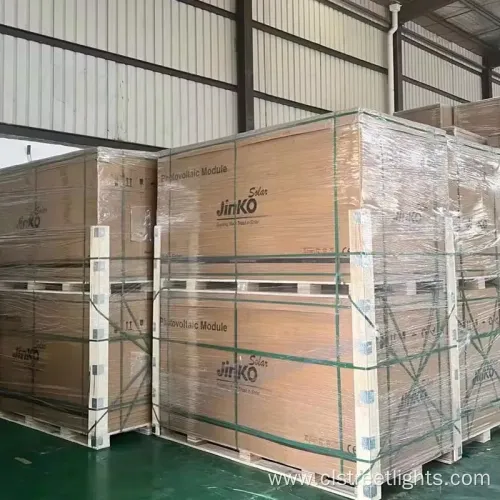

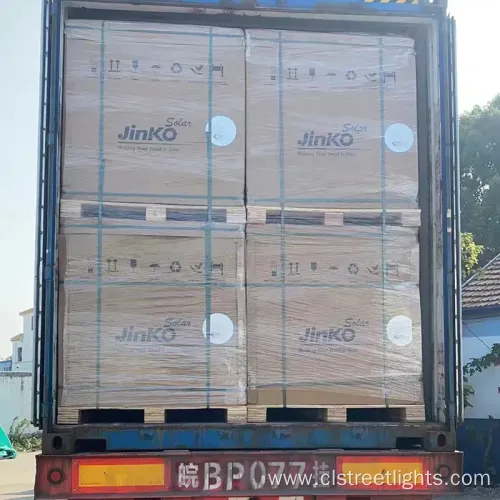

Packaging Configuration

  • Pallet Dimentions 2525×1140×1251 mm
  • Packing Detail (Two pallets = One stack) 36 pcs/pallets 72 pcs/stack 576 pcs/ 40'HQ Container

Specifications (STC)

Maximum Power - Pmax [Wp] 625 630 635 640 645 650
Maximum Power Voltage - Vmp [V] 47.54 47.7 47.86 48.02 48.17 48.33
Maximum Power Current - Imp [A] 13.15 13.21 13.27 13.33 13.39 13.45
Open-circuit Voltage - Voc [V] 56.95 57.08 57.21 57.34 57.47 57.6
Short-circuit Current - Isc [A] 13.8 13.86 13.92 13.98 14.04 14.1
Module Efficiency STC [%] 22.36 22.54 22.72 22.90 23.07 23.25
  • Power Tolerance 0 ~ + 3 %
  • Temperature Coefficients of Pmax -0.29 %/°C
  • Temperature Coefficients of Voc -0.25 %/°C
  • Temperature Coefficients of Isc 0.045 %/°C
