Model NO.: M26-100-ST
Light Source: LED Lamp
Lamp Body Material: Aluminum
Light Type: Solar
Color Temperature: Pure White
Power: ≥30W
Technics: Casting Aluminum
Illumination Time: 6h
Cell Type: LiFePO4
Charging Time (h): 6
Usage: Street
IP Rating: IP66
Certification: ce, rohs
Voltage: 12/24V
With Light Source: With Light Source
Working Model: 100%-75%-50%-100%
Feature: Support 4G Lora
Sample: Availble
Luminous Efficacy: 205lm/W
Mounting Height: Max 15meter

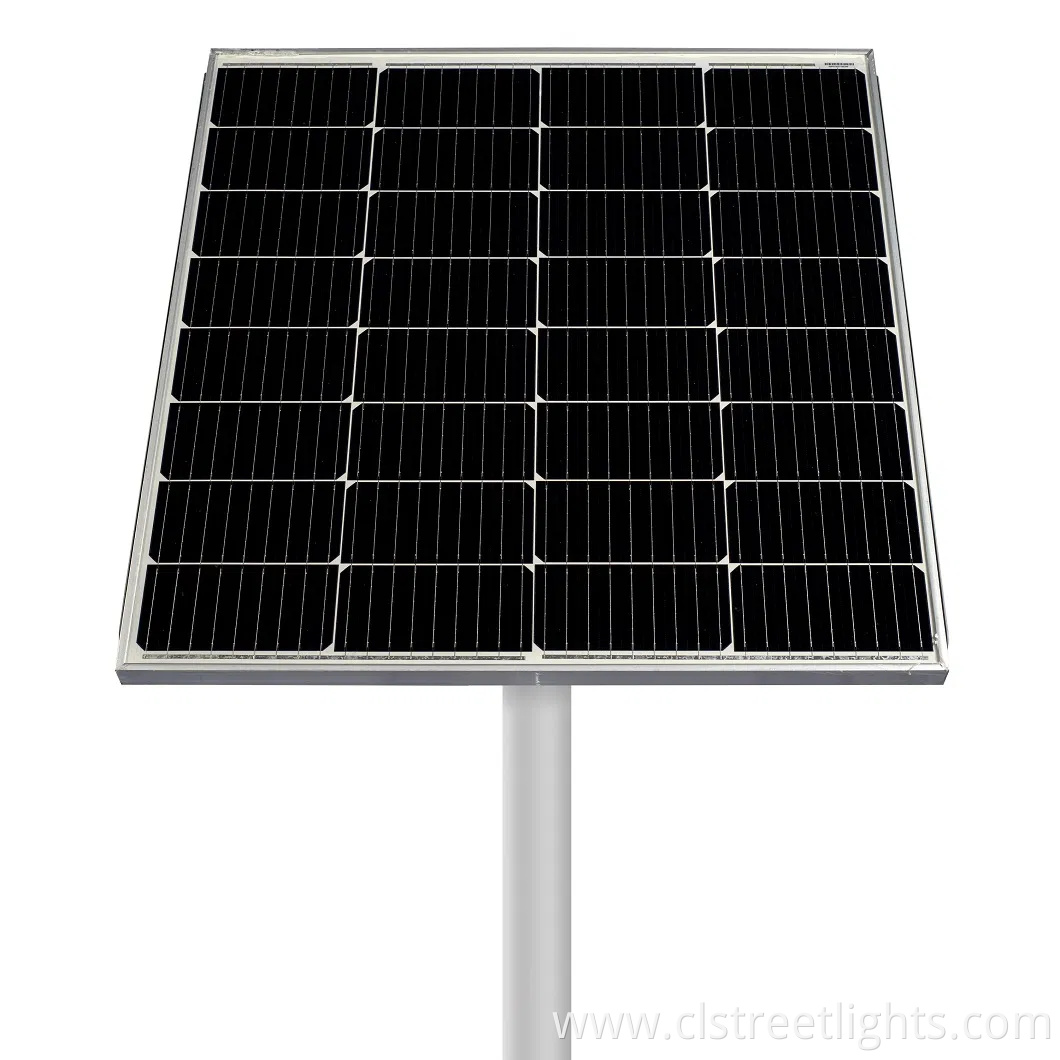

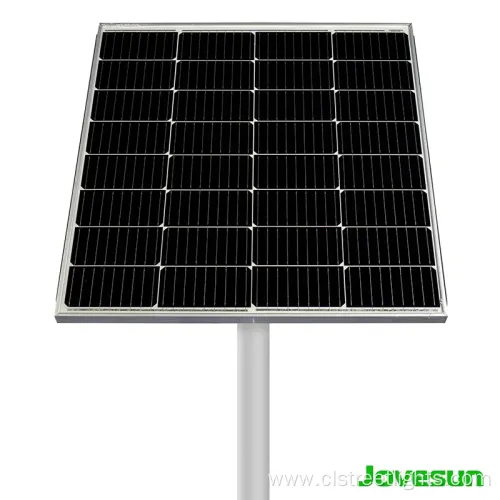

PV Panel: Mono 240wp
Battery: 1152wh
Certificate: IP Ik Lm79 Lm80 CE RoHS
Mounting: Two Parts
Transport Package: Carton
Specification: 800*320*150mm
Trademark: Jovesun
Origin: China
HS Code: 9405410
Production Capacity: 5000pieces/Month
Customization: Available
After-sales Service: Available
Warranty: 5 Years
Supply Ability: 5000pieces/Month

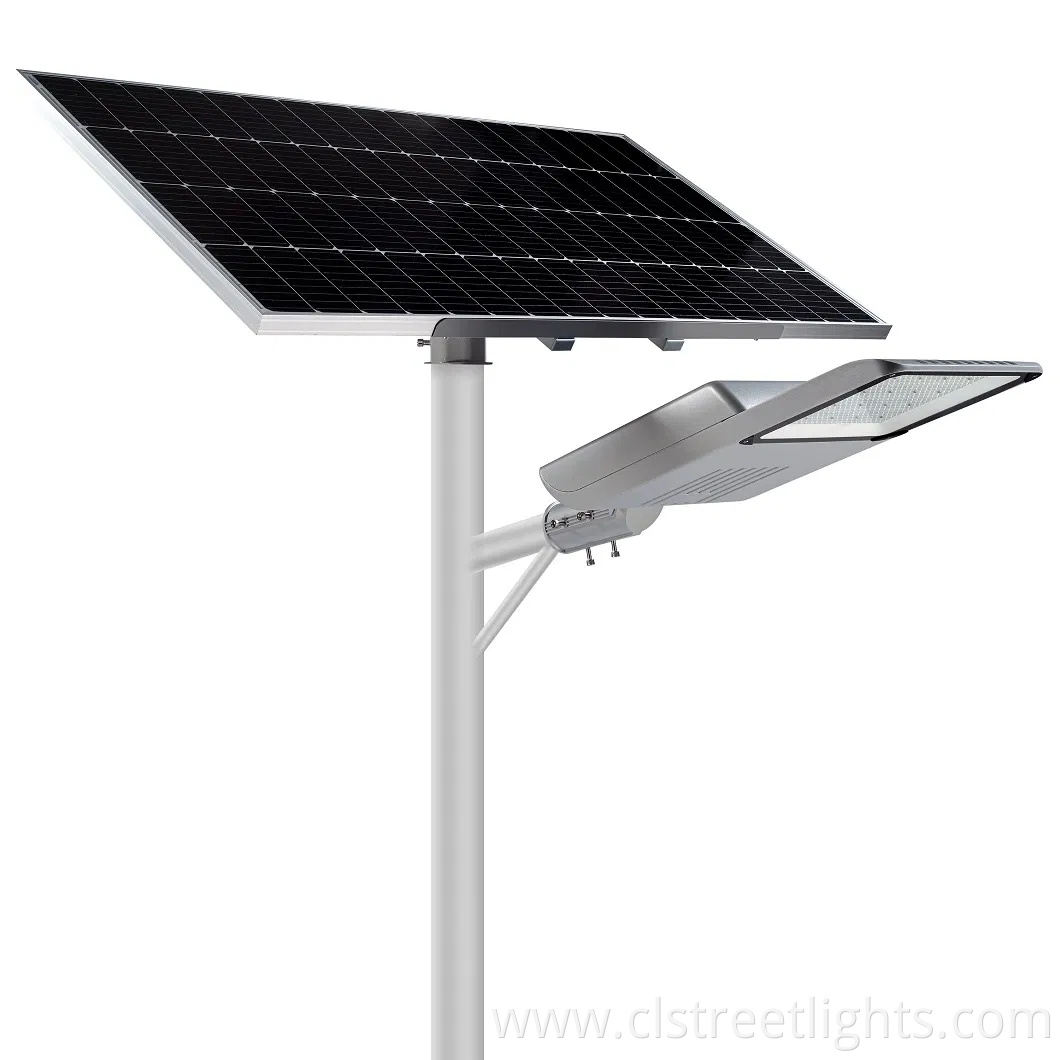

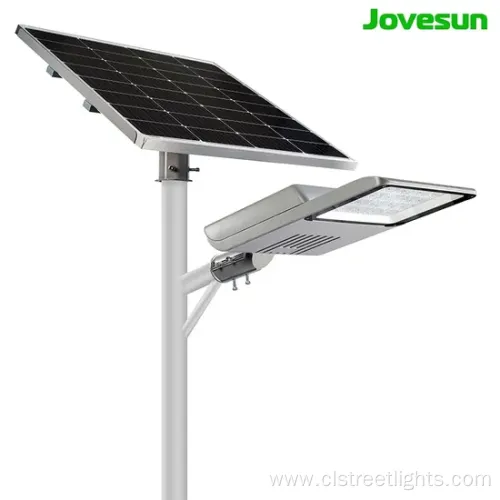

Solar Street Lights model M25 was made according to ISO 9001 standard, with 205Lm/W high luminous efficacy, especially for PUBLIC lighting use. Designed by integrated fixture, with PV panel, Lithium battery, charge controller, led components all together, which make the installation easily. With 24% convert solar pv panel MONO type, and LiFePo4 battery, Constant current driver, MPPT charging agreement, which make the solar lights have excellent charge and discharge performance. M25 model 120watts can be used for Max 12meter mounting height with luminous flux 52lx, which is strong lumens with advanced technology of led improvement, with Type I Type II Type III Type IV Type V different optical lens which make the lights can be widely be used for expressway, highway, Road, Area lighting.....
| Items | Parameters | M26st-50W | M26st-60W | M26st-80W | M26st-100W | M26st-120W | M26st-150W |
|---|---|---|---|---|---|---|---|
| Solar Panel | 100Wp 18V | 120Wp 18V | 160Wp 18V | 200Wp 18V | 240Wp 18V | 300Wp 18V | |
| Battery | 244Wh | 384Wh | 576Wh | 768Wh | 960Wh | 1152Wh | |
| LED Chips | 3030 SMD4C*192pcs | 3030 SMD4C*192pcs | 3030 SMD4C*256pcs | 3030 SMD4C*300pcs | 3030 SMD4C*320pcs | 3030 SMD4C*384pcs | |
| Power | 50W | 60W | 80W | 100W | 120W | 150W | |
| Efficacy | 205Lm/W | ||||||
| Luminous flux | 6150lm | 8200lm | 12300lm | 16400lm | 20500lm | 24600lm | |
| CRI | >70Ra | ||||||
| CCT | 2700k to 6500k | ||||||
| Feature | MPPT - IoT Lora - Motion Sensor | ||||||
| Working model | Motion sensor+timer+Intelligent | ||||||
| Discharge time | 12 to 14 hours each night | ||||||
| Backup | Support 3 nights with BMS (Battery manage system) | ||||||
| Charge time | 5 hours | ||||||
| Mounting Height | 5-6 meter | 6-8meter | 8-10meter | 10-12meter | 12-14meter | 14-16meter |
Product Categories : Solar Street Light > Split Type Solar Street Light
