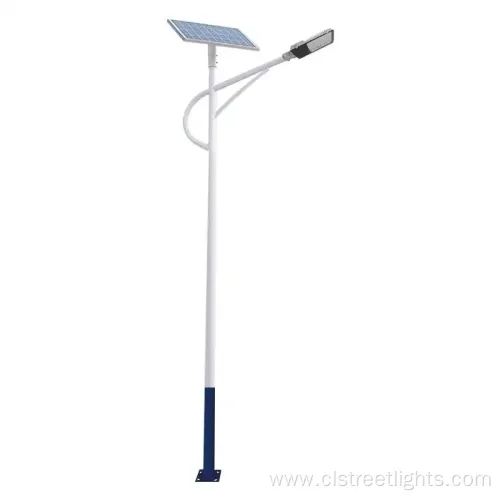

Integrated Solar LED Street Light with 5-Year Warranty
  • Integrated Solar LED Street Light with 5-Year Warranty
  • Integrated Solar LED Street Light with 5-Year Warranty
  • Integrated Solar LED Street Light with 5-Year Warranty
  • Integrated Solar LED Street Light with 5-Year Warranty
  • Integrated Solar LED Street Light with 5-Year Warranty
  • Integrated Solar LED Street Light with 5-Year Warranty
  • Integrated Solar LED Street Light with 5-Year Warranty

Integrated Solar LED Street Light with 5-Year Warranty

Min. Order:
1 Piece/Pieces
Share:
  • Product Description
< >
Overview
Product Attributes

Model NO.: SSL44

Light Source: LED Lamp

Lamp Body Material: Die Cast Aluminum Alloy

Light Type: Energy Saving

Color Temperature: Cool White,Warm White,3000K~6000K

Power: 30W~80W

Technics: Hot DIP Galvanized,Powder Coating

Illumination Time: 10h

Cell Type: LiFePO4 or Gelled or Lead-Acid Soalr Battery

Charging Time (h): 10

Usage: Street, Higway, Garden,Square

IP Rating: IP66

Certification: Ce

Voltage: 12/24V

With Light Source: With Light Source

Luminous Efficiency: 120lm/W

Color Rendering Index(Ra): 85

Solar Panel: 40W/50W/65W/80W/100W/150W/200W

Workig Temperature: -25ºC to 65ºC

Beam Angle: 70*140degree

Transport Package: Wrapped with Felt Fabric or Woven Bag

Specification: Polycrystalline, Holder, LED chip, Optic Lens.

Trademark: OEM/ODM

Origin: China

HS Code: 73089000

Production Capacity: 5000set/Month

Customization: Available

After-sales Service: 3 Years

Warranty: 3 Years

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Supply Ability & Additional Information

Supply Ability: 5000set/Month

Packaging & Delivery
Selling Units:
Piece/Pieces
Overview

Basic Info.

Model NO.
SSL44
Light Source
LED Lamp
Lamp Body Material
Die Cast Aluminum Alloy
Light Type
Energy Saving
Color Temperature
Cool White,Warm White,3000K~6000K
Power
30W~80W
Technics
Hot DIP Galvanized,Powder Coating
Illumination Time
10h
Cell Type
LiFePO4 or Gelled or Lead-Acid Soalr Battery
Charging Time (H)
10
Usage
Street, Higway, Garden,Square
IP Rating
IP66
Certification
CE
Voltage
12/24V
With Light Source
With Light Source
Luminous Efficiency
120lm/W
Color Rendering Index(Ra)
>80
Solar Panel
40W/50W/65W/80W/100W/150W/200W
Workig Temperature
-25ºC to 65ºC
Beam Angle
70*140degree
Transport Package
Wrapped with Felt Fabric or Woven Bag
Specification
Polycrystalline, Holder, LED chip, Optic Lens.
Trademark
OEM/ODM
Origin
China
HS Code
73089000
Production Capacity
5000set/Month

Packaging & Delivery

Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg

Product Description

All in Two Integrated Solar LED Power Street Light with 5 Years WarrantyComplete set of Solar Street Light for exterior lighting
Popular Price
Quality Stable
Fast Delivery

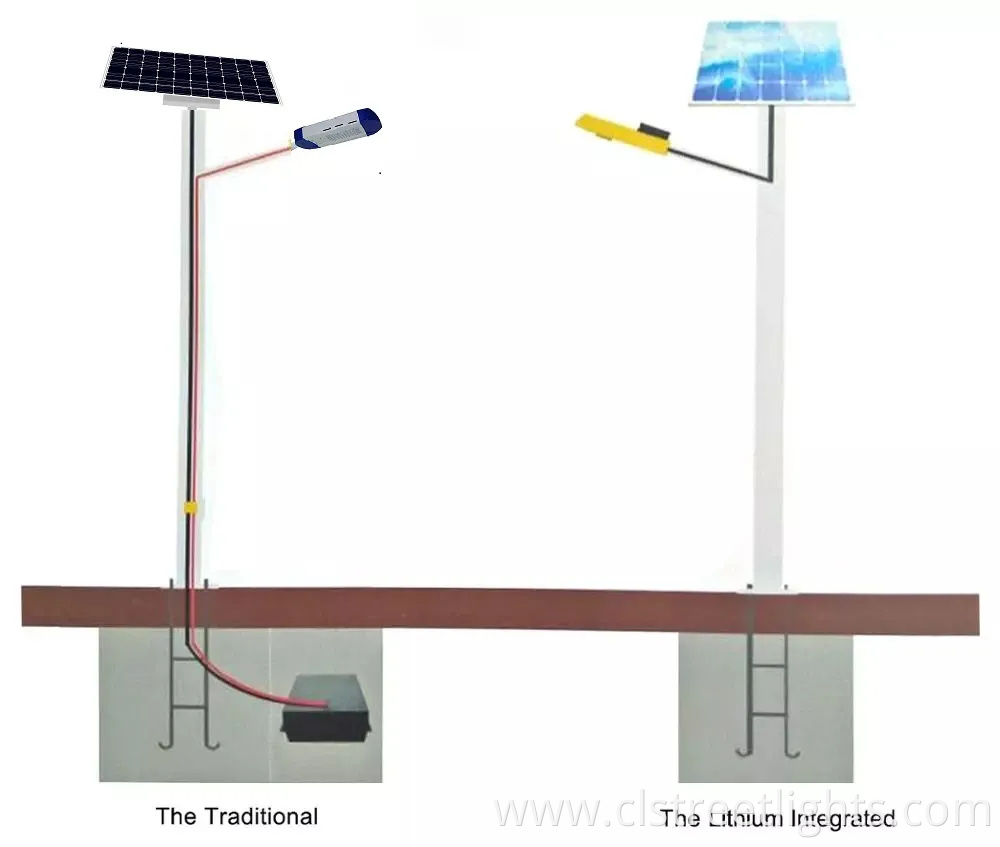

Lights are powered by Photovoltaic panels and generally mounted on the lighting structure or integrated in the pole itself. The photovoltaic panels charge a rechargeable battery and it powers a LED Luminary, We can design a different size of solar street poles with LED luminary as per customer requirement. We will design the size of solar panel and batteries as per the Luminary capacity.

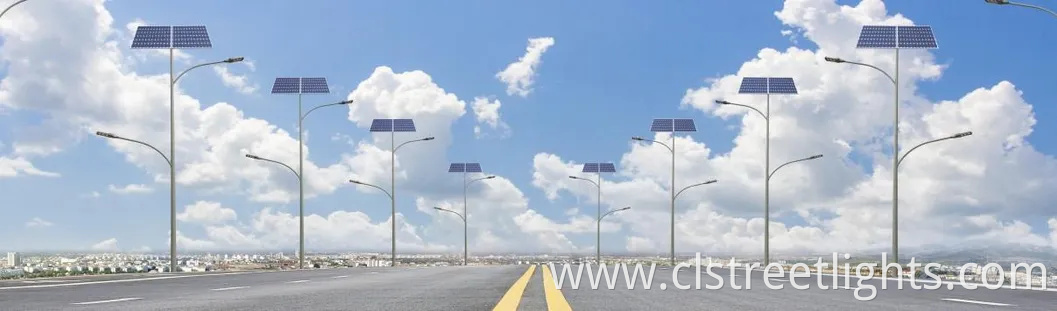

Solar Street lighting system is an ideal lighting system for the illumination of streets, squares and cross roads located in areas that are not connected to the power grid. This fully integrated system combines the latest and most innovative technologies available providing years of convenient and trouble free lighting. Fully assembled factory tested kits are available. We deliver & erect solar Street Light poles in societies, parks, bungalows, farm houses, schools & colleges, commercial buildings & townships.

Advantage of our solar street light system as follows:
Easy to install and safe to use
Compact and highly efficient
Simple, rugged and reliable
Long Life, negligible maintenance
No power cable, No electricity bill
Steel pipes manufactured as per ASTM specification
Weighs 50-70% less than comparable concrete structures
Scope of Customization
Free of copper wire grounding
Fully recyclable and non-toxic
Capable of galvanizing all sizes of poles in Single Dip
Easy Install and Maintenance
Highly Corrosion Resistant
Durable
Long Life



please send us your inquiry, we would calculate the best popular price for you, to help you win the existing project. Please get back to us for more details discussion.
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

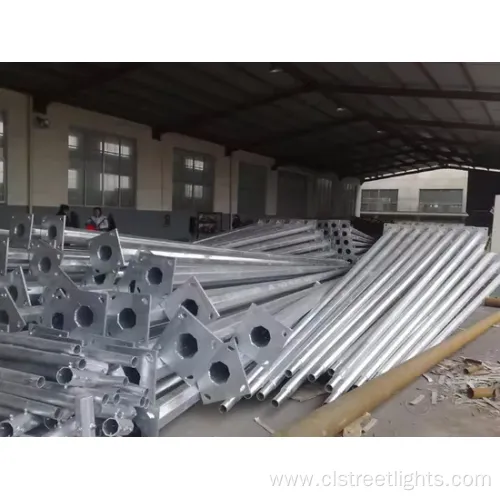

Features of Lighting Poles:
Height 3-45m
Applications
  • Street / Road , Highway, Commercial Areas, Seaport, AirPort, Parking Lot, Stadium, Square, etc.
Shape
  • Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagon, etc)
Material
  • Q235, Q355 Steel
Surface Treatment
  • Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006
  • Can be powder coated or painted according to clients' request
Wall Thickness
  • 2~30mm
Once Forming
  • 16m Once forming without joint
Welding
  • Welding complies with AWS D1.1 standard.
  • CO2 welding or submerged arc auto methods
  • No fissure, scar, overlap, layer or other defects
  • Internal and external welding makes the pole more beautiful in shape
  • If customers need any other requirements of welding, we also can make adjustment with your request
Joint
  •  Joint with insert mode, flange mode.
Base plate
  • Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client's requirement.
Life Span
  • More than 25 years, it is according to installing environment

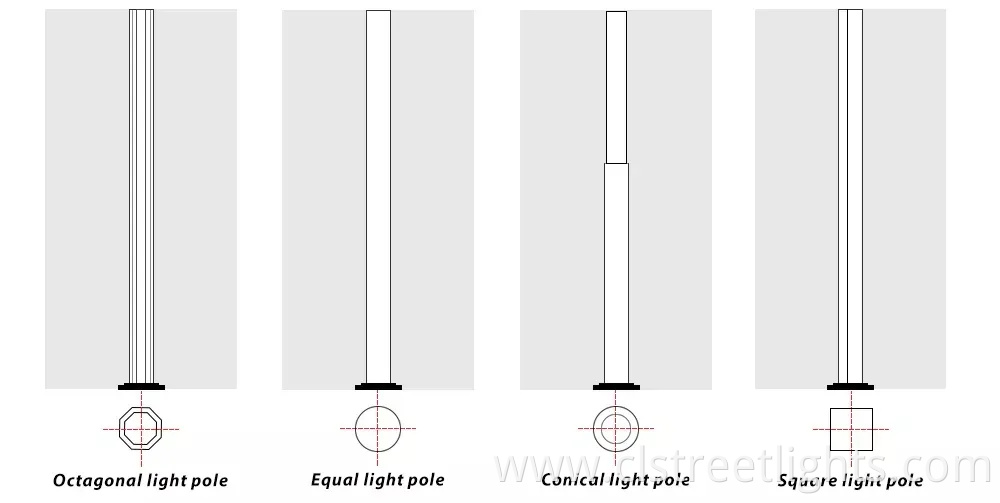

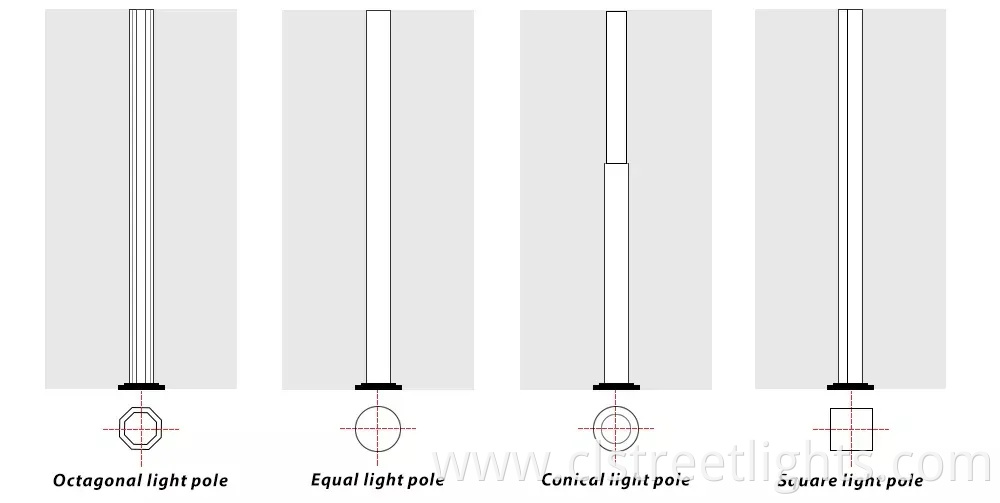

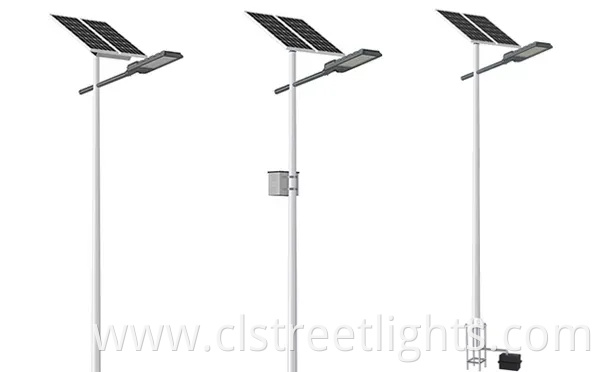

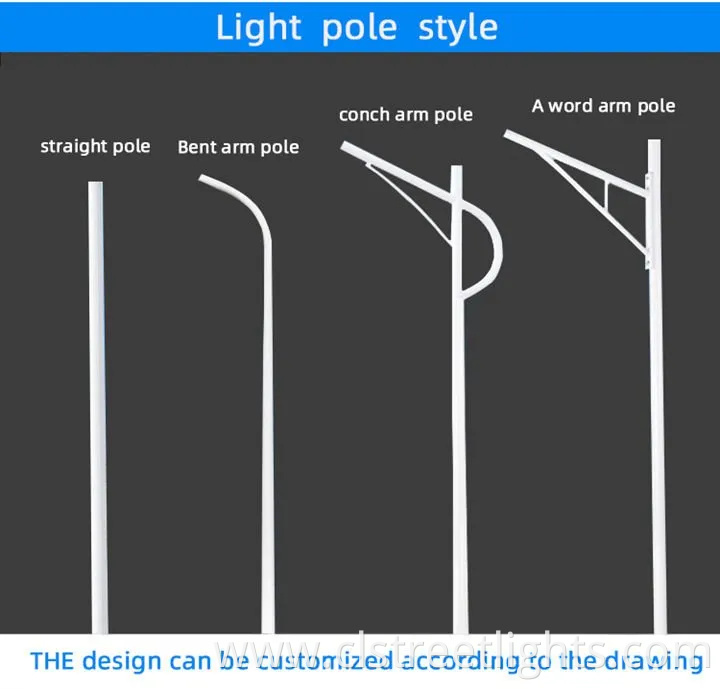

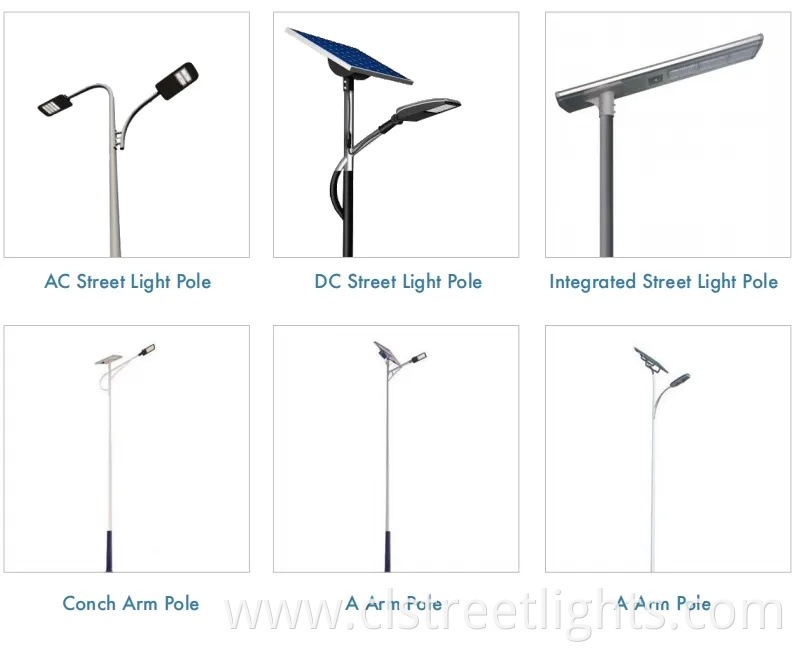

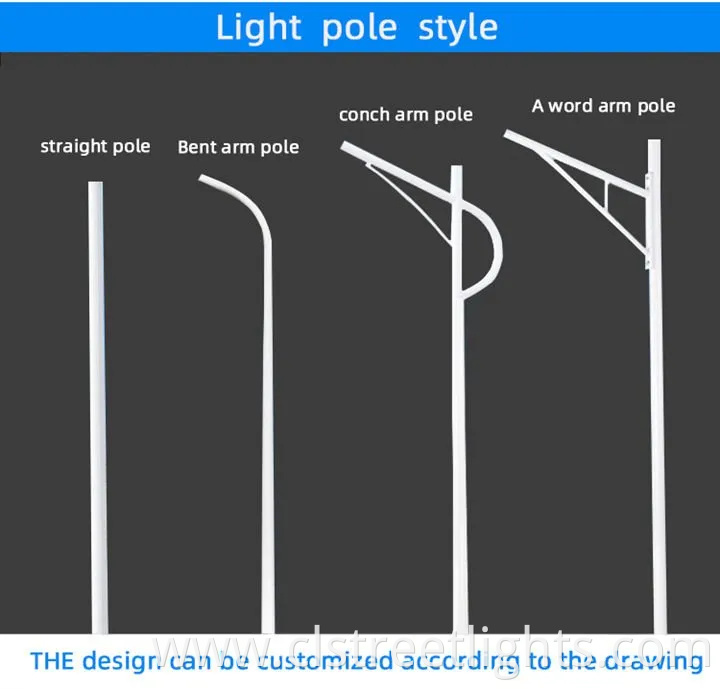

Lighting Pole Style:

All in Two Integrated Solar LED Power Street Light with 5 Years WarrantyAll in Two Integrated Solar LED Power Street Light with 5 Years WarrantyPOLE SHAPE (Customized Service)

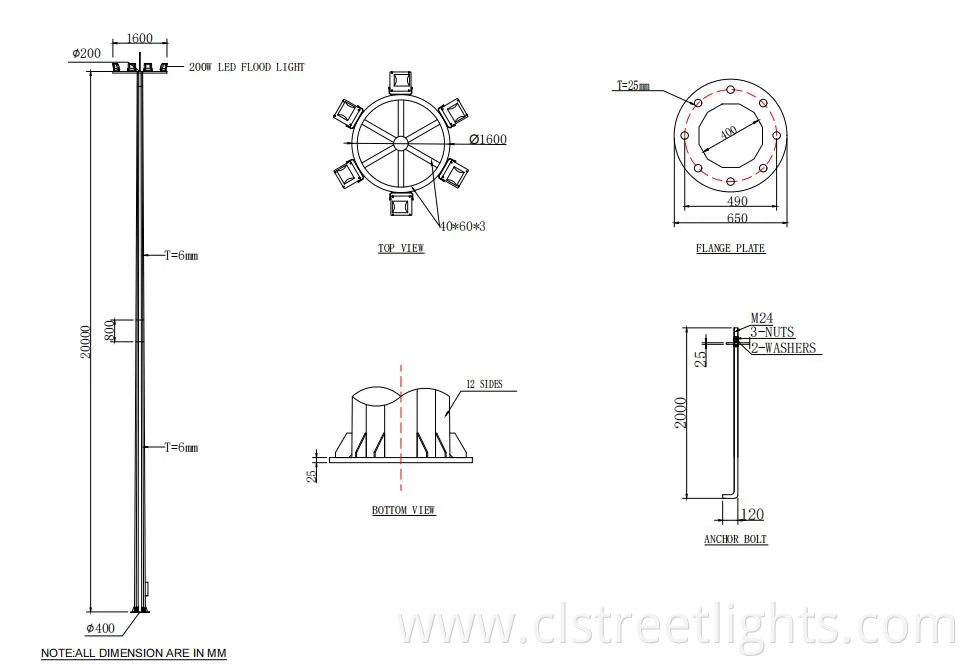

All in Two Integrated Solar LED Power Street Light with 5 Years WarrantyPOLE DESIGN(Customized Service)--CAD Design
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty3D Physic Design

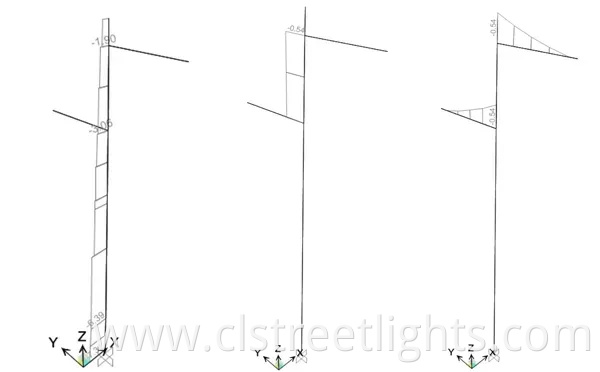

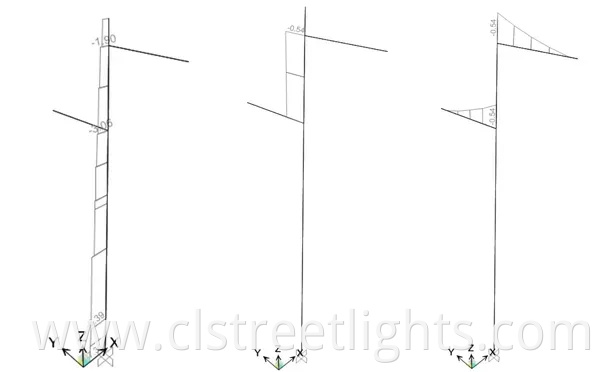

All in Two Integrated Solar LED Power Street Light with 5 Years WarrantyWind-Resistant Design

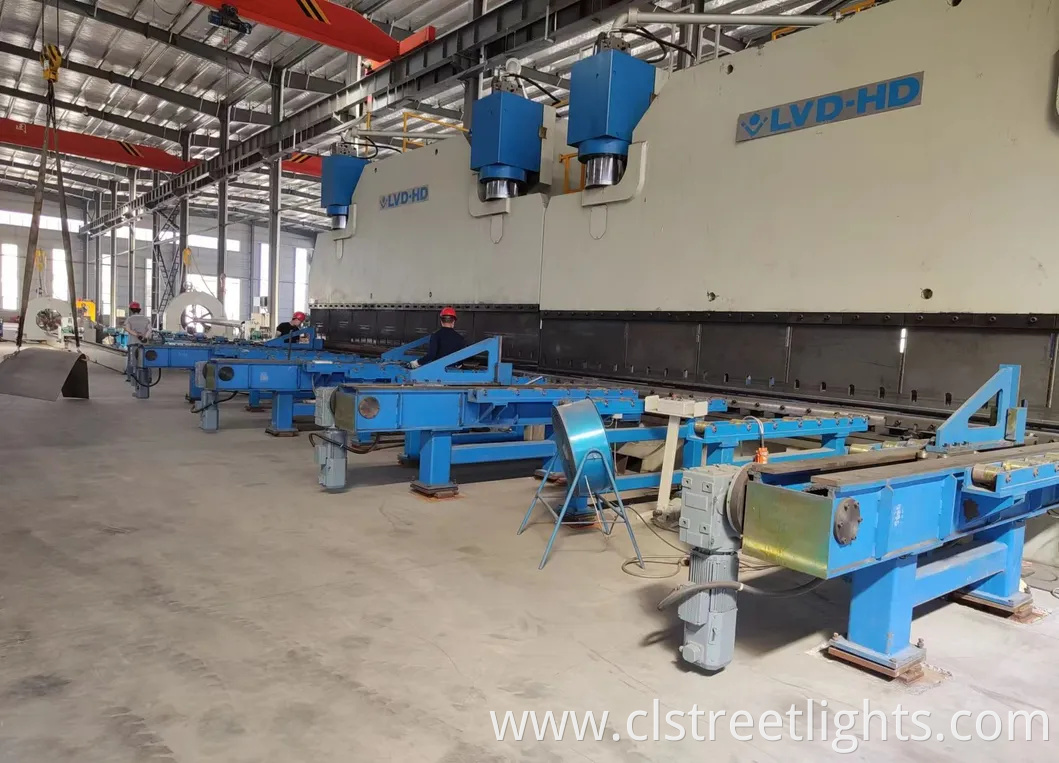

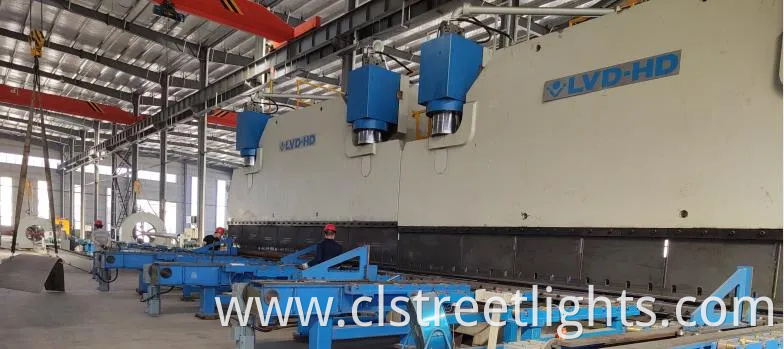

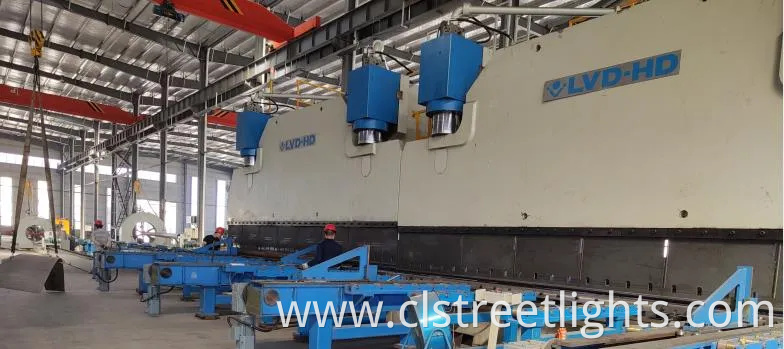

All in Two Integrated Solar LED Power Street Light with 5 Years WarrantyPOLE FORMING
-Loss of Roundness of Tapered Pole <6%
-Maximum Processing Thickness 16mm
-Monthly production of 24 000
-1200T*4
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

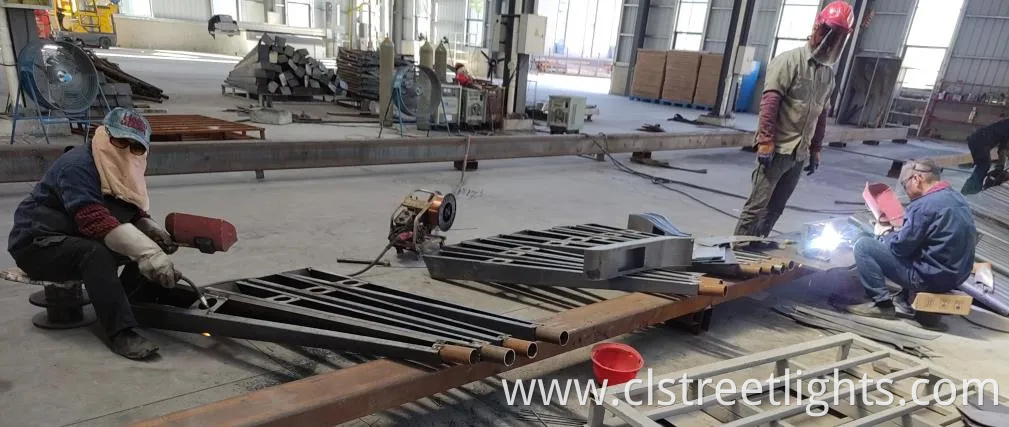

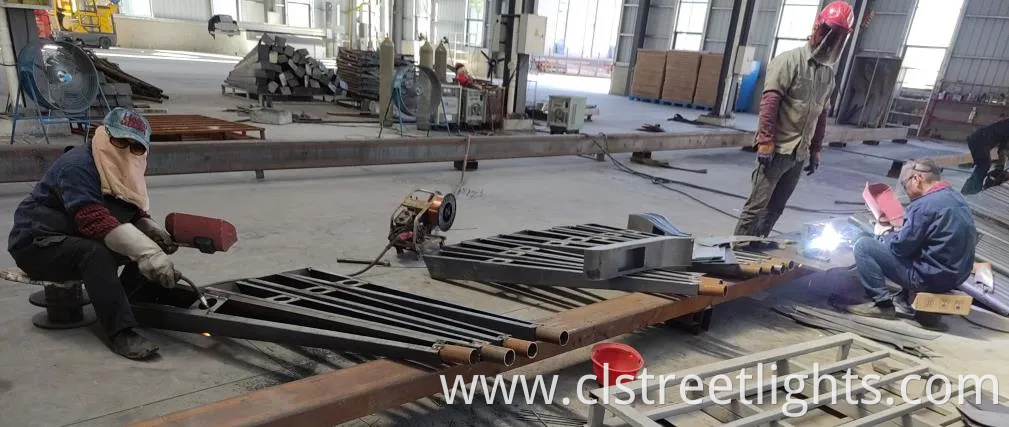

WELDING
50 worker in the welding team to ensure each order of  mass production finished without delay
All of the welder have CSWIP, experienced welder ensure our welding quality.
All in Two Integrated Solar LED Power Street Light with 5 Years WarrantyAll in Two Integrated Solar LED Power Street Light with 5 Years Warranty

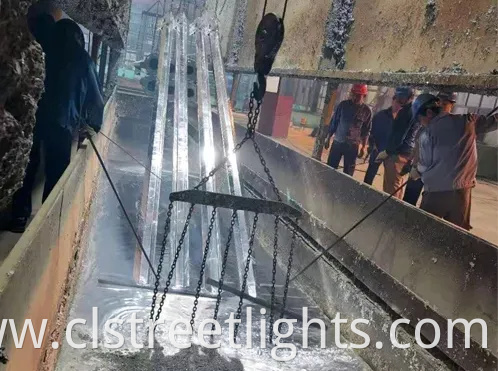

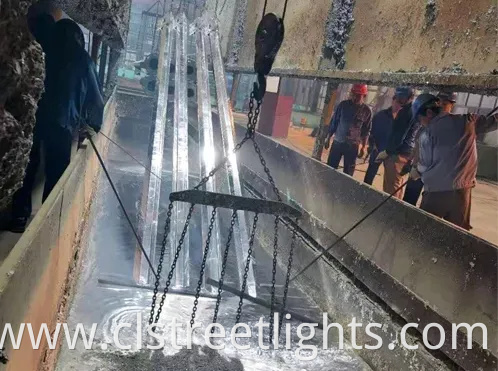

HOT-DIP GALVANIZING
Antiseptic treatment.
Galvanized layer no less than 86 microns.
Galvanized life no less than 20 years.
Rust Protection
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty
POWDER COATING
Using high-quality pure polyester plastic powder.
The service life should not less than 20 years, meanwhile thickness≥80um
Meet the ASTMD339-83 standard.
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

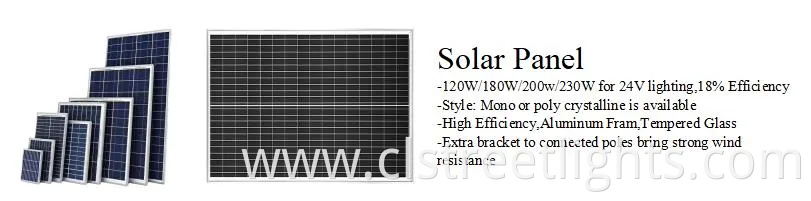

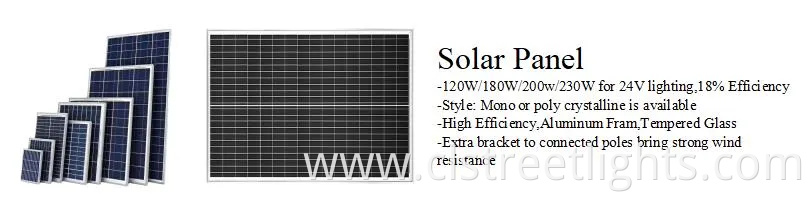

Solar Panel
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

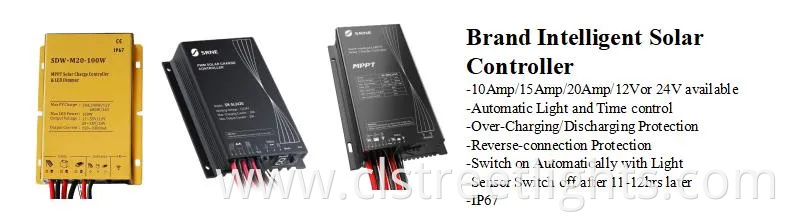

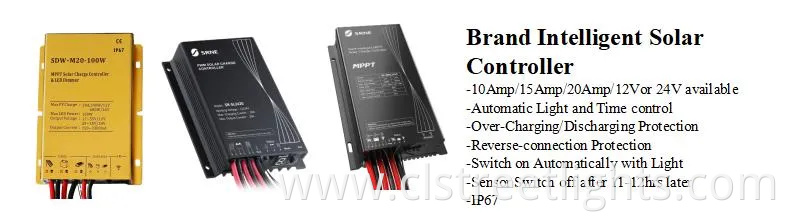

Solar Controller
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

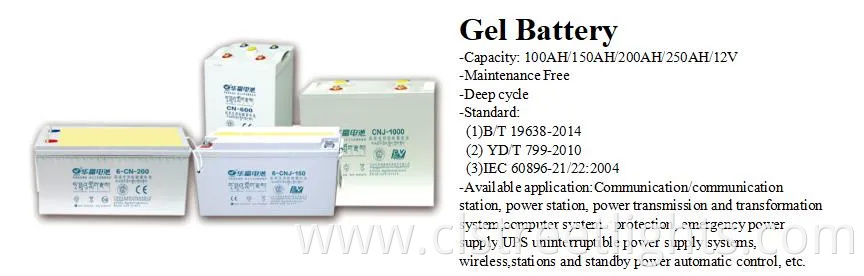

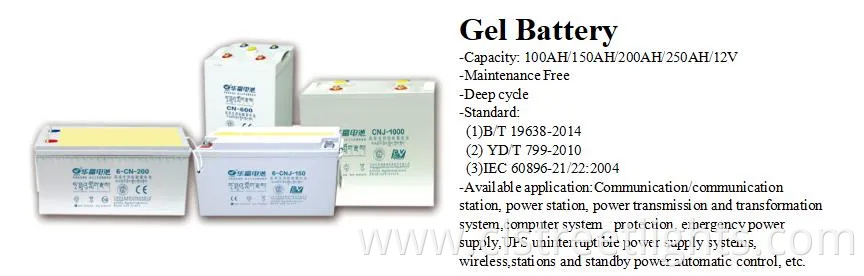

Battery
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

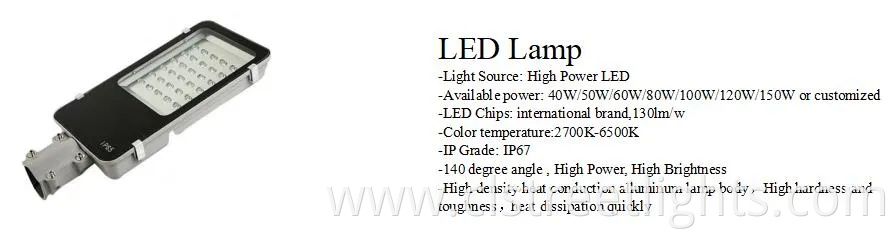

Luminaire
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

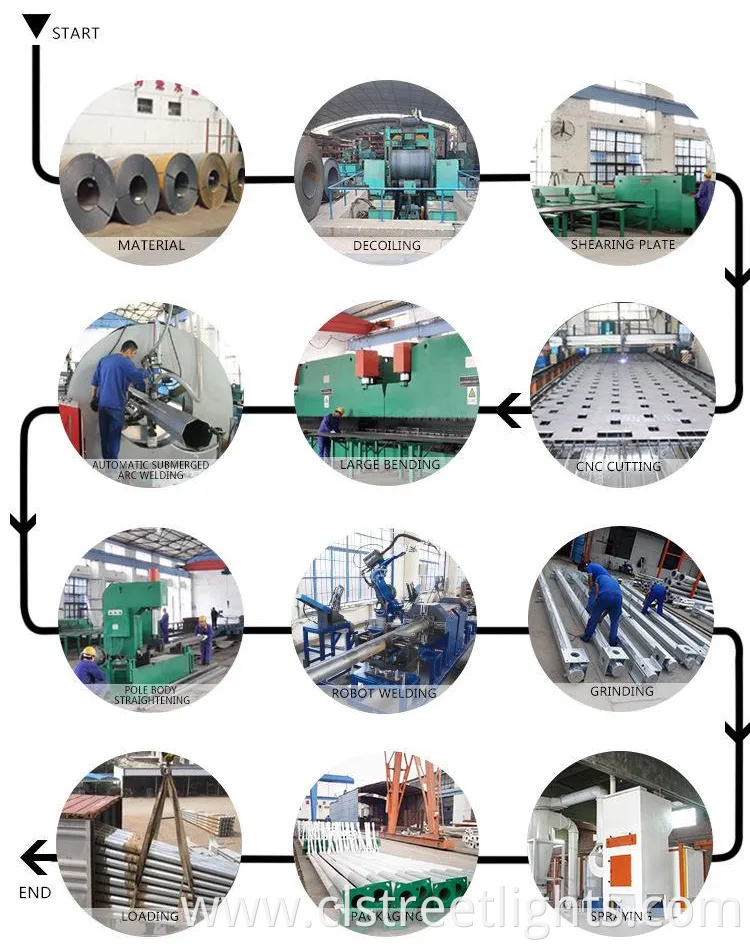

Working Procedure of Mass Production
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

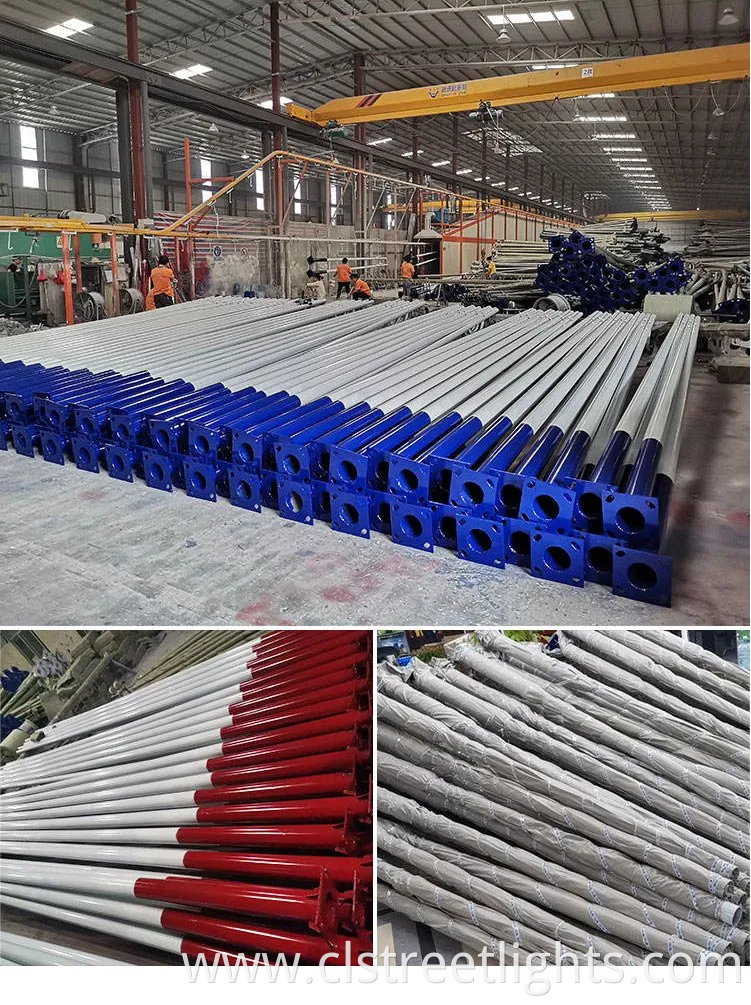

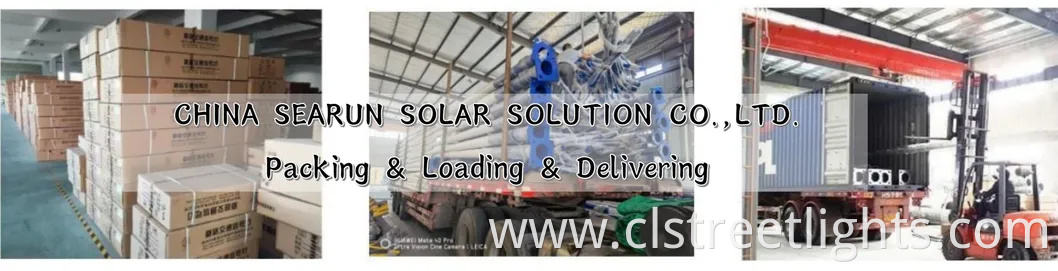

Packing and Stock:
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

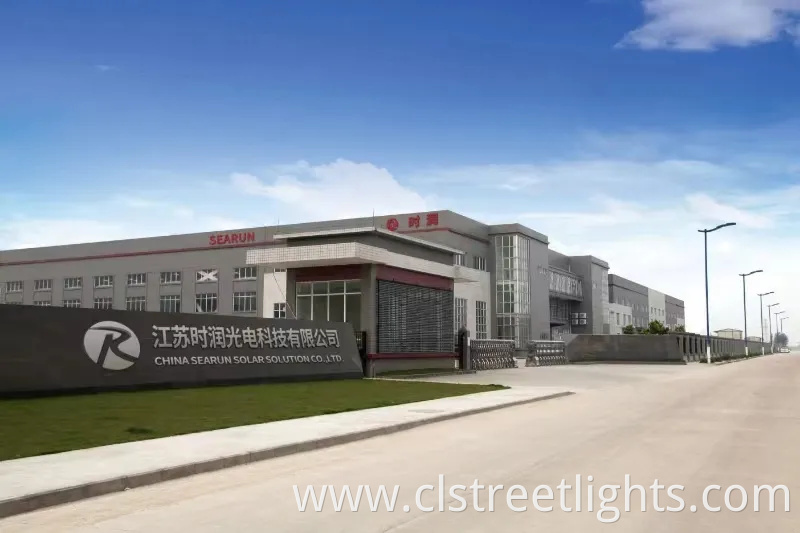

About us


All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

China Searun Solar Solution Co., Ltd. is a professional lighting enterprise integrating production, R&D and marketing, adjacent to the ancient town of China's street light capital. It is one of the excellent street light manufacturers in the industry.

Our company offers variety of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
We adheres to the operation and management philosophy of "Not only being satisfied with quality, But also constantly launching innovative products, team common development, and creating golden quality", and always adheres to the management mode of "meeting consumer needs, taking technology research and development as the core, and scientific and humanized".
Our company also has several sets of aluminum metal die-casting molds to produce various types of exterior lighting fixtures. It is an important business scope of our company to manufacture precision stainless steel Lamp Poles, lamps for courtyards and lawns, and luxury lamps for square lighting. In addition, the new high-power LED lamps and solar power generation systems independently developed by our company are being introduced to the market.


All in Two Integrated Solar LED Power Street Light with 5 Years Warranty
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty
The main products of China Searun Solar Solution Co., Ltd. Include monitoring steel pole, double arm lighting, single arm lighting, solar street light, High Mast Light, traffic signal light, Chinese ancient light, landscape light, courtyard lamp, antique lamp, Chinese knot, LED light tube, LED light source, LED wall washing lamp, geographic lamp, projection lamp, Longmen span, peach blossom lamp, lawn lamp, road indicator, solar panel, solar pump, power station, lighting series, etc., as well as supporting ballasts, triggers, light control, time control switch boxes Cables, interconnects, etc.
We adhere to the tenet of "survival by quality, benefit from management", and wholeheartedly provide high-quality services for new and old customers. Standing on the starting line of the new century, opportunities and challenges coexist.

As in the past, we will regard today's quality as tomorrow's market and the profit the day after tomorrow, provide you with satisfactory products and make contributions to beautifying our urban and rural areas.

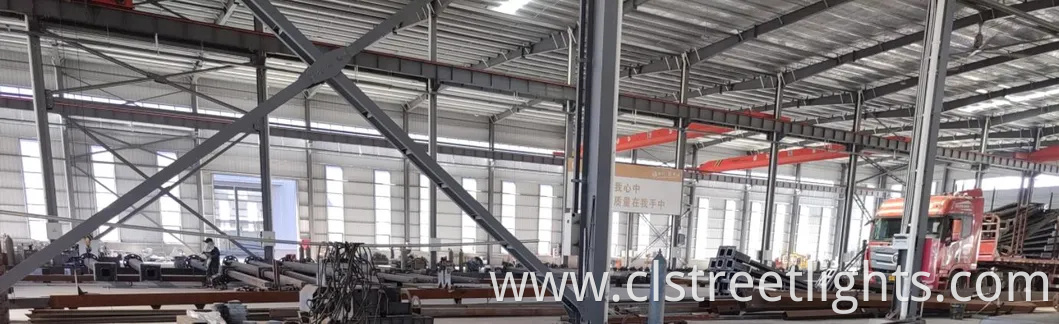

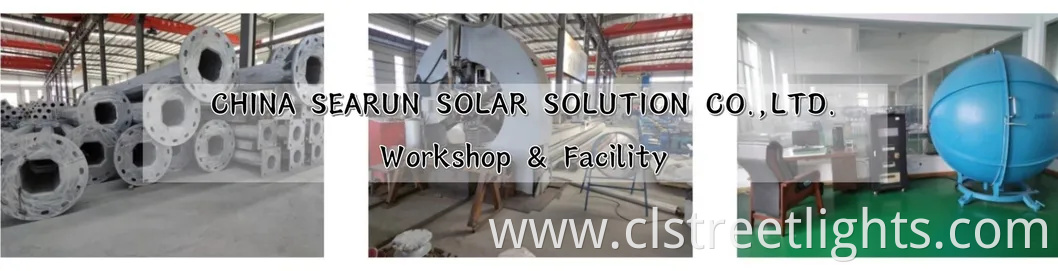

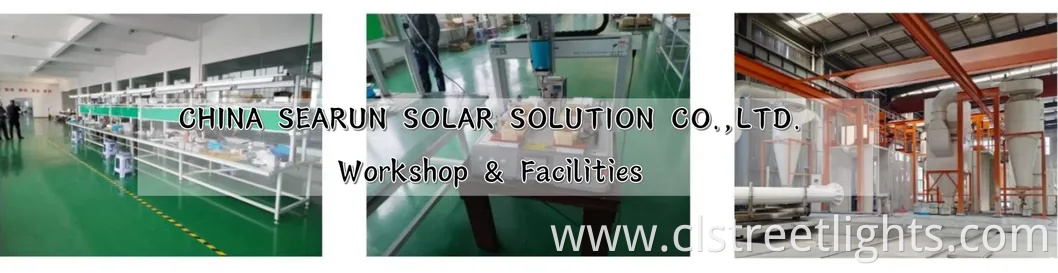

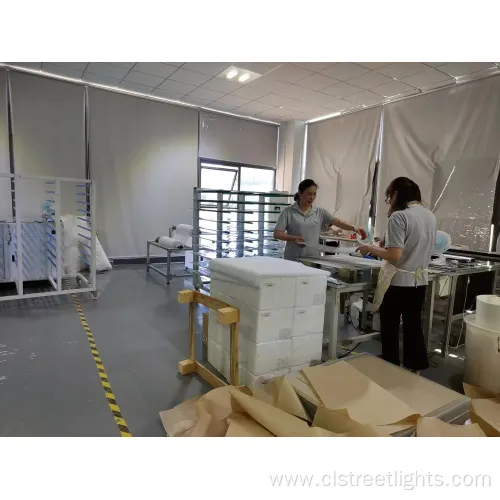

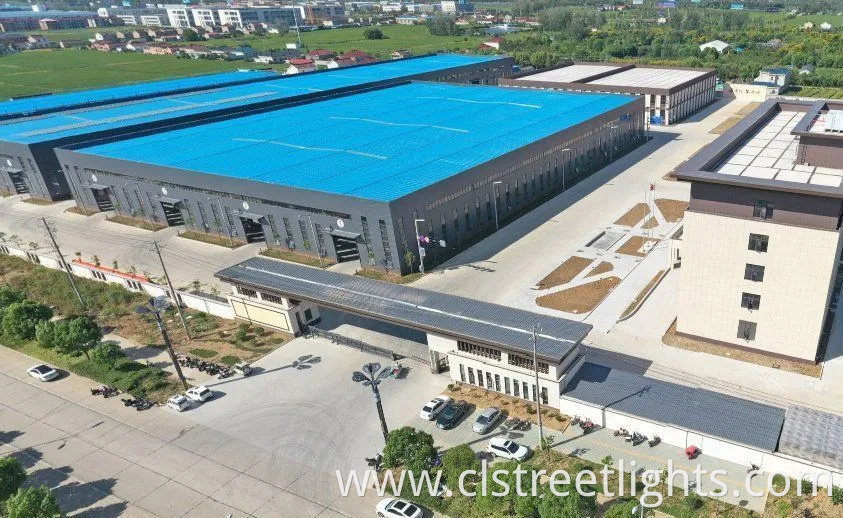

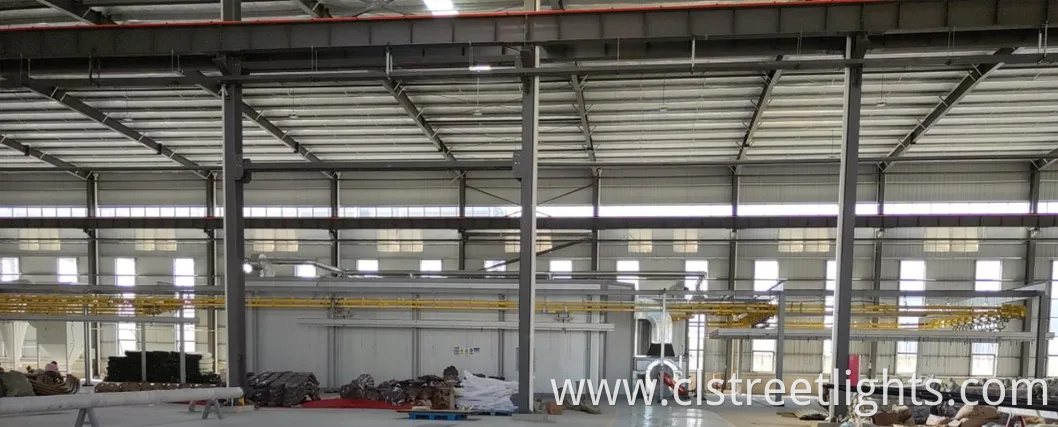

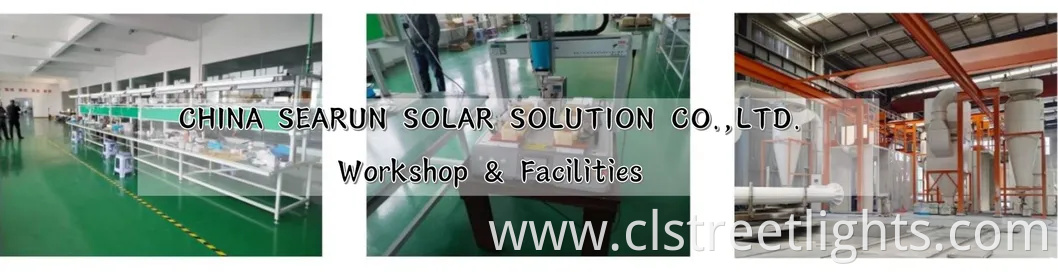

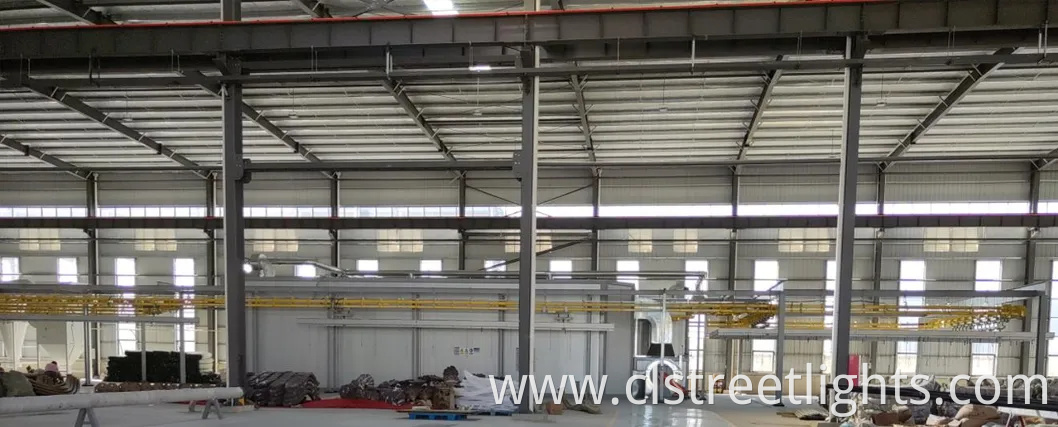

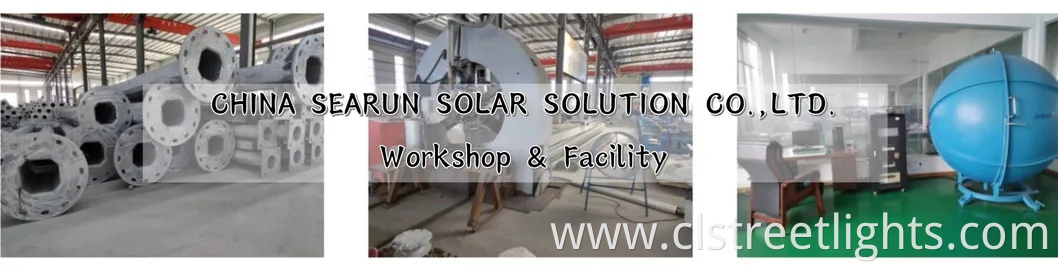

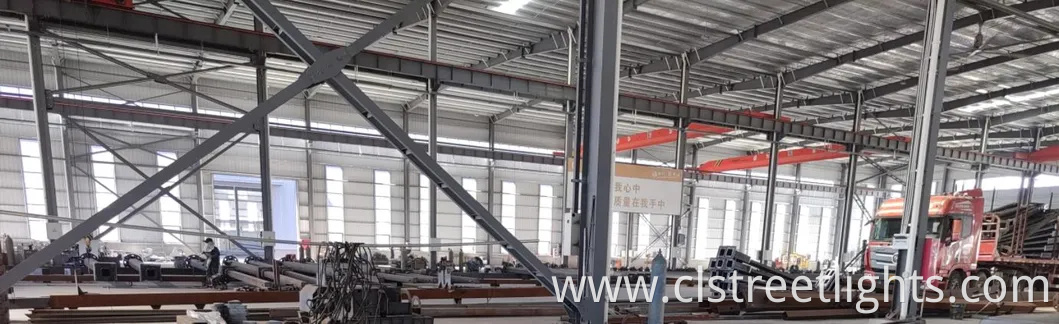

WorkShop
All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

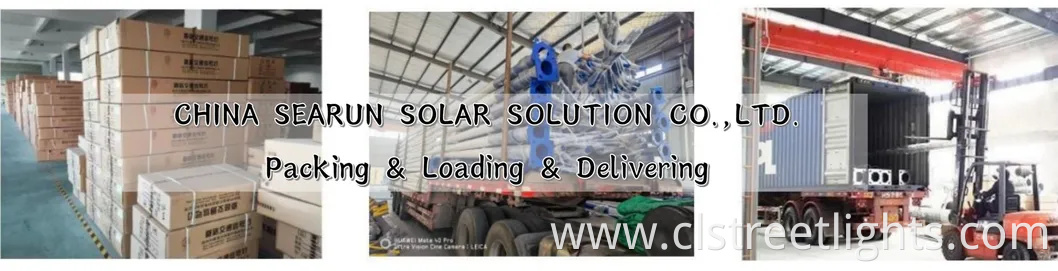

Packaging & Shipping

All in Two Integrated Solar LED Power Street Light with 5 Years Warranty

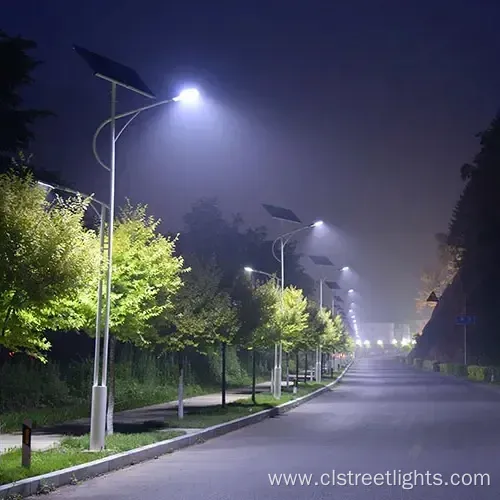

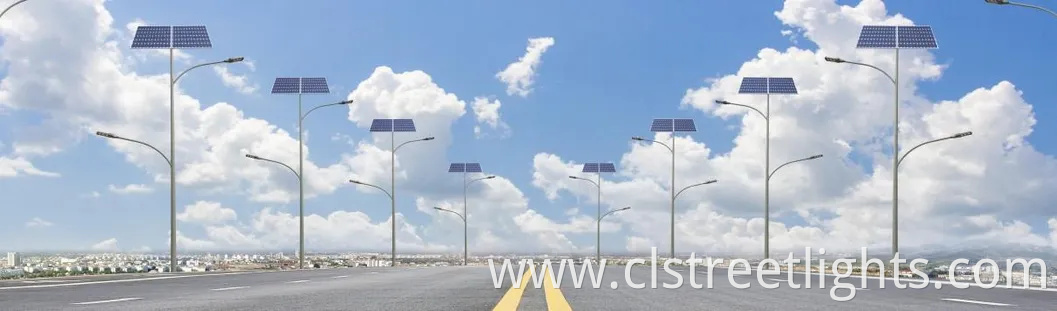

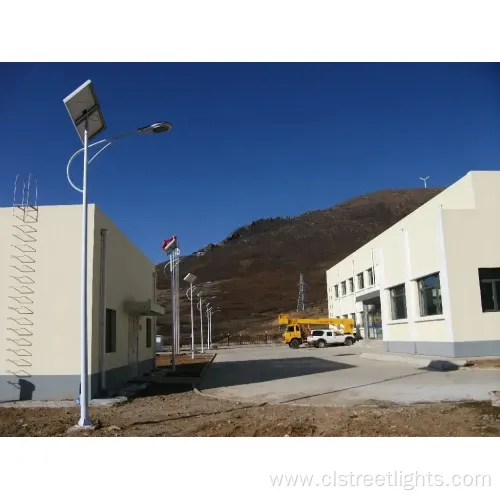

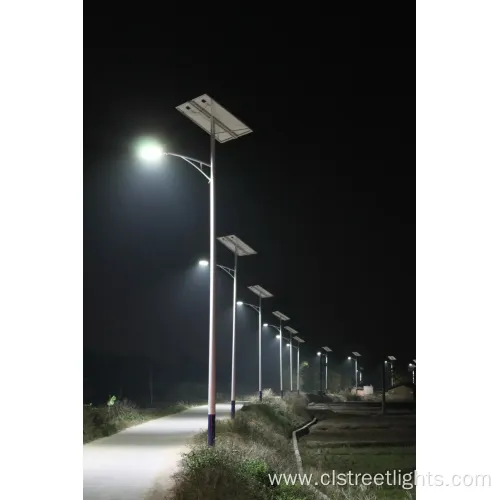

Application




Newest Feedback from Client



Our Advantages


A.) ISO9001,CE, RoHS, IEC,IES,FCC, SONCAP, SASO,PVOC,CCPIT, CCC approved Manufacturer & Exporter;
B.) Swift delivery time, usually will be 15 working days, the fastest time could be within 7 days if needing;
C.) Professional Engineering Team for Installation Instruction can be available;
D.) Best service from our specialized sales teams and swift reply on the premise of accurate design
