Model NO.: Sky30W
Light Source: LED Lamp
Lamp Body Material: Aluminum Alloy
Light Type: Solar
Color Temperature: Cool White
Power: 30w
Technics: Electroplating
Illumination Time: 5-7 Dads
Cell Type: LiFePO4 12.8V30ah
Charging Time (H): 4-6hours
Usage: Garden, Street, Housing Estate
IP Rating: Ip66
Certification: Ce
Voltage: 12.8V
With Light Source: With Light Source

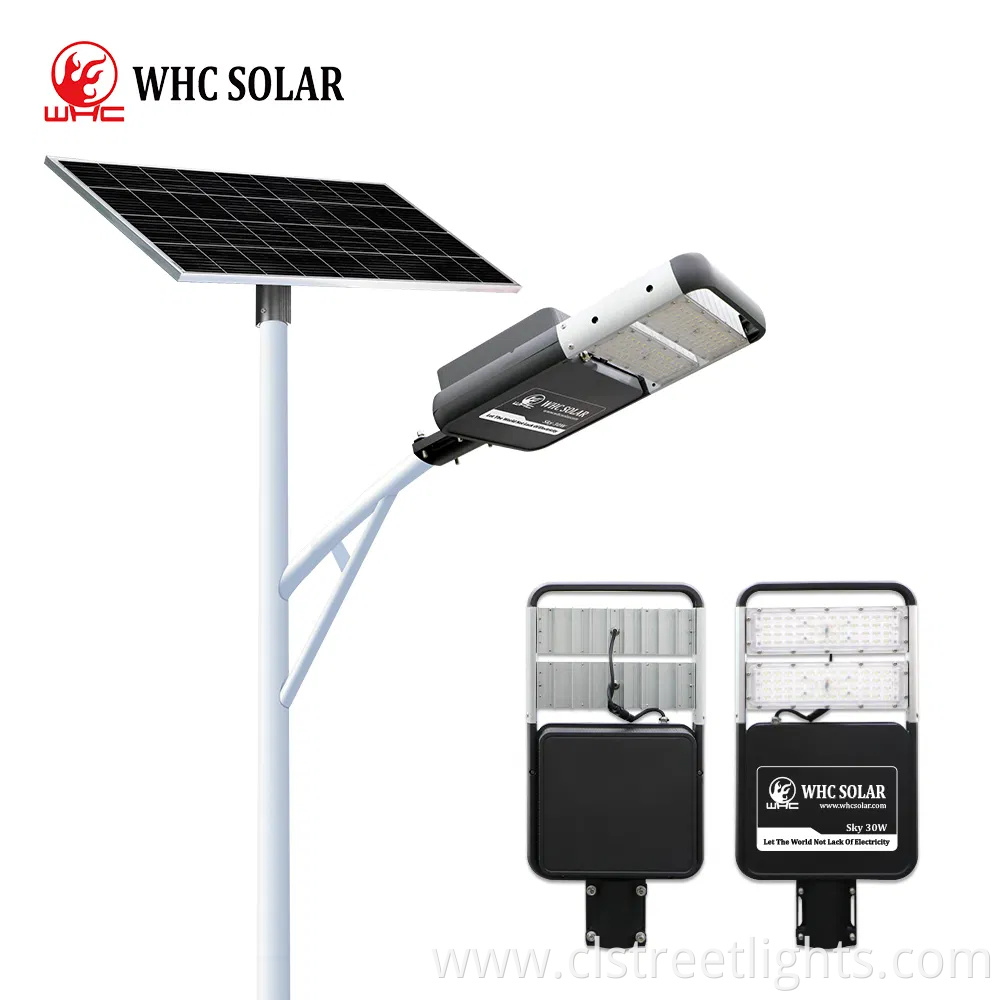

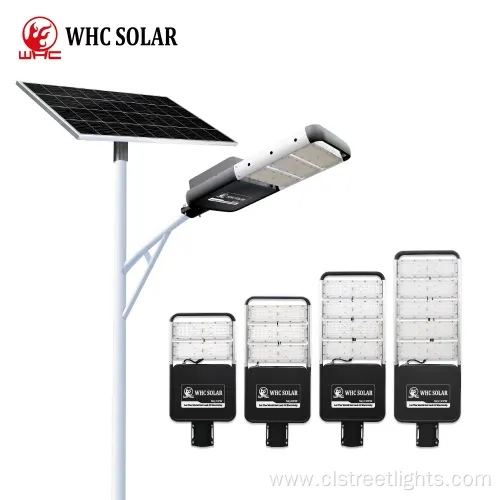

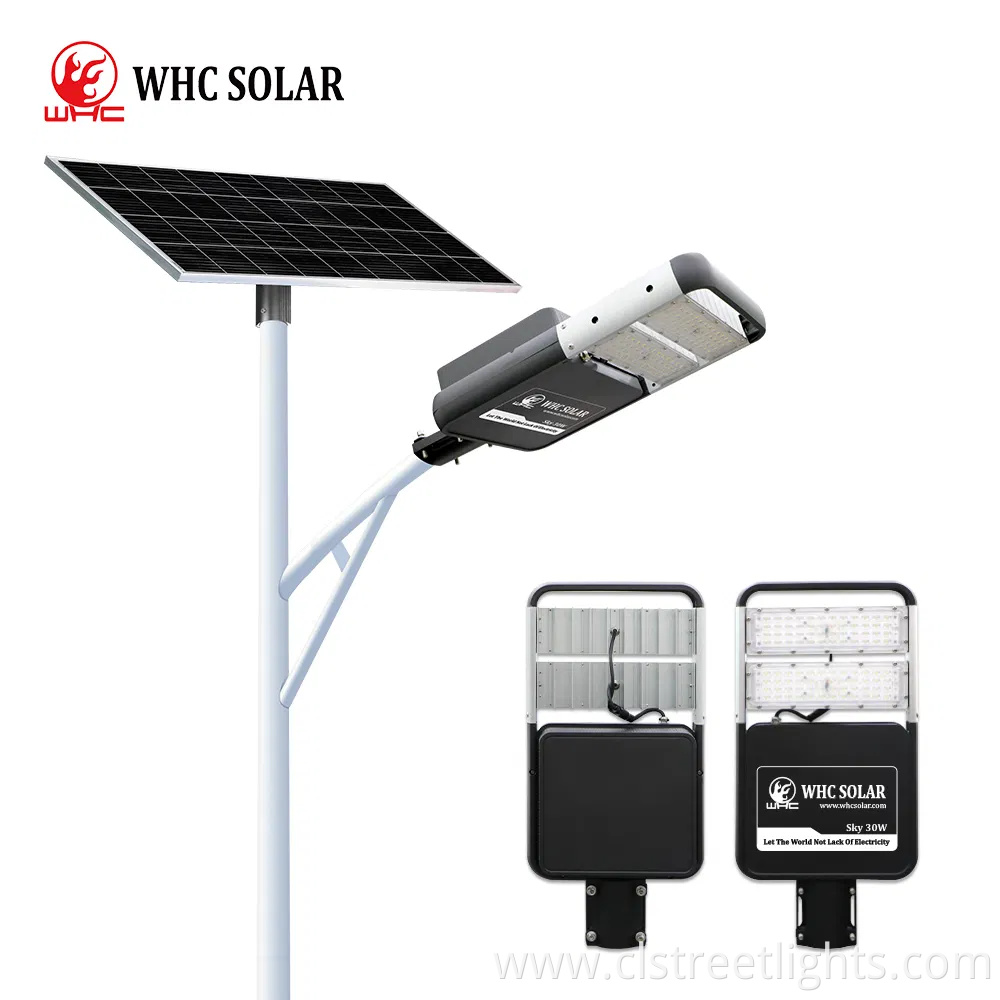

Product Name: Whc All in Two Intergrated Split Solar Panel LED S
Model: Intergrated (Pb) Series
Solar Panel Mono: Mono 50 W
LEDs: 96 PCS
Lamp Power(W): 30/40/50/60/80/100/120 (W)
Emitting Color: Cold White / Warm White
Color Temperature(CCT): 6000k (Daylight Alert)
Beam Angle(°): 140
CRI (Ra>): 70
Lamp Luminous Efficiency(lm/w): 220lm/W
Lamp Luminous Flux(lm): 4000lm-12000lm
Hot Brand: Whc
Transport Package: Package in Carton or According to Your Requiremen
Specification: 30W
Trademark: WHC / WHC SOLAR
Origin: Guangdong, China (Mainland)
Production Capacity: 10000pieces/Month
Customization: Available
After-sales Service: Yes
Warranty: 36 months
Supply Ability: 10000pieces/Month
PRODUCT FEATURES
| We thank you for the inquiry and please find below our products features | |||||||

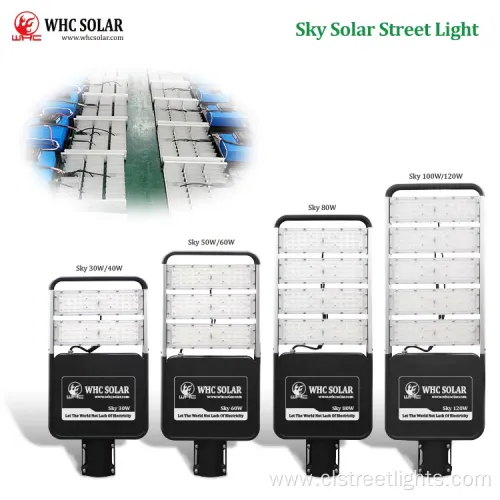

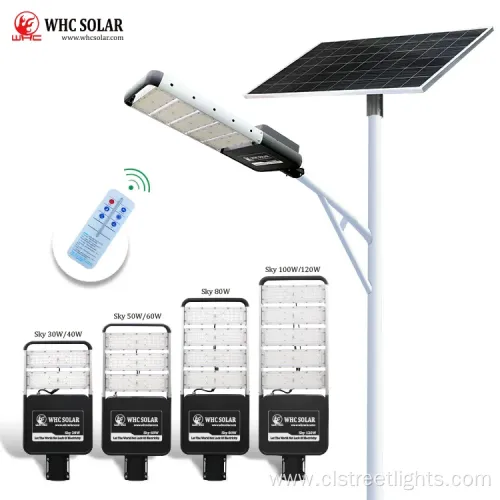

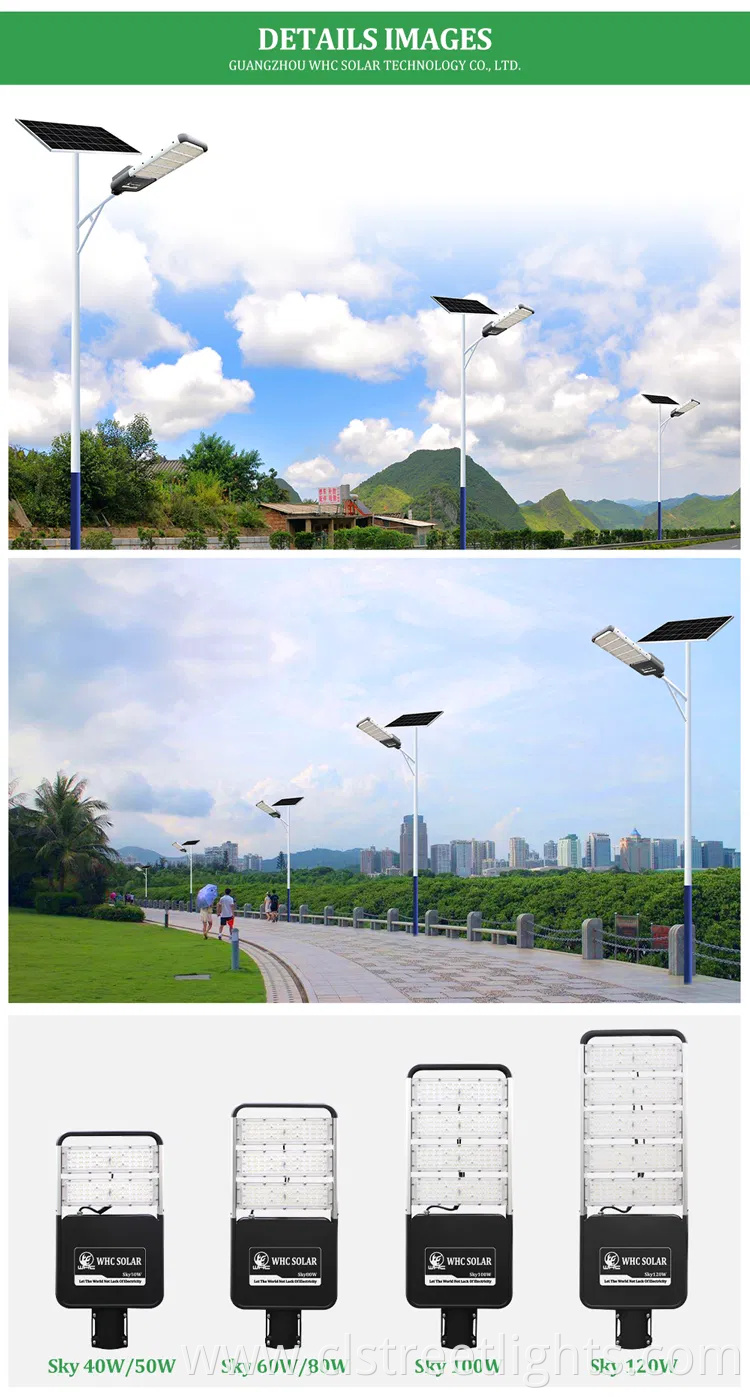

| Model | Sky 30W | Sky 40W | Sky 50W | Sky 60W | Sky 80W | Sky 100W | Sky 120W |
| LED Power | 30W | 40W | 50W | 60W | 80W | 100W | 120W |
| Led Chip | America Bridgelux 3030 | ||||||
| Led | 96PCS | 96PCS | 144PCS | 144PCS | 192PCS | 240PCS | 240PCS |
| Mono Solar Panel | 50W | 60W | 70W | 80W | 100W | 150W | 200W |

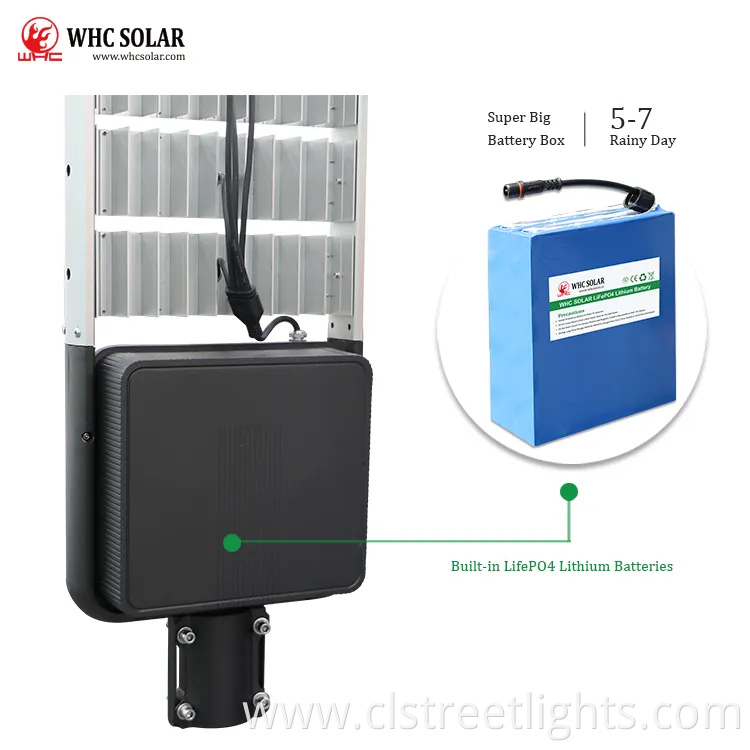

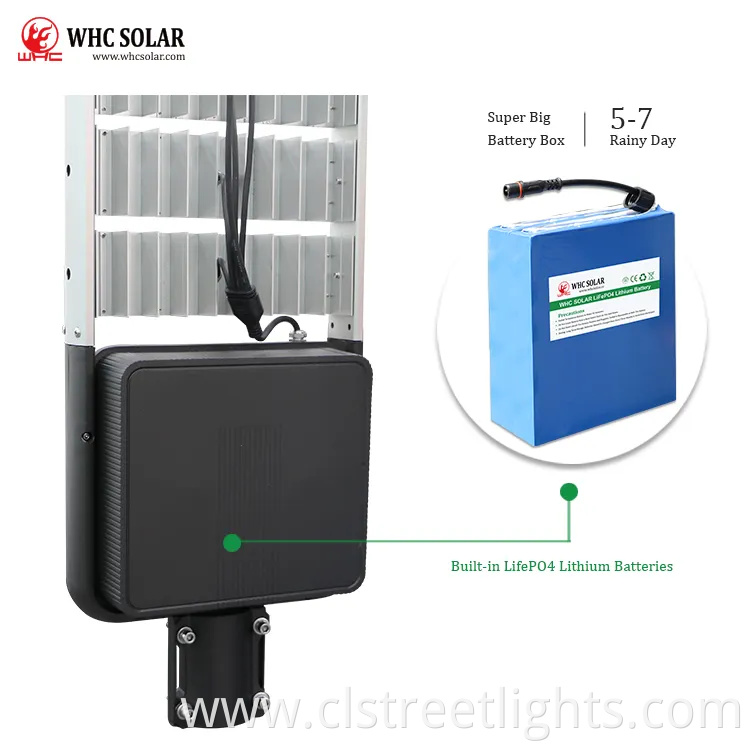

| LifePO4 Lithium Battery | 12.8V30AH | 12.8V36AH | 12.8V42AH | 12.8V48AH | 12.8V60AH | 12.8V72AH | 12.8V84AH |
| Mounting Height | 4-6m | 5-7m | 6-8m | 7-9m | 8-10m | 9-12m | 10-12m |
| Space between 2 lamps | 10-20m | 15-25m | 20-30m | 20-30m | 25-35m | 30-40m | 30-40m |
| Controller | MPPT | ||||||
| Remote Control | Yes,each order 1PC | ||||||
| Material | High Class Aluminum | ||||||
| Mounting Brackets | optional | ||||||
| IP Rating | IP66 | ||||||
| Charging Time | 4-6H | ||||||
| Working Time | 5-7 cloudy / Rainy Days Back Up | ||||||
| Color Temperature | Nature White 6000-6500K | ||||||
| CBM/set | 0.053 | 0.054 | 0.062 | 0.075 | 0.082 | 0.113 | 0.13 |
| Weight/set | 10 | 11 | 12.5 | 13.6 | 17.5 | 21 | 24 |
SYSTEM APPLICATIONS

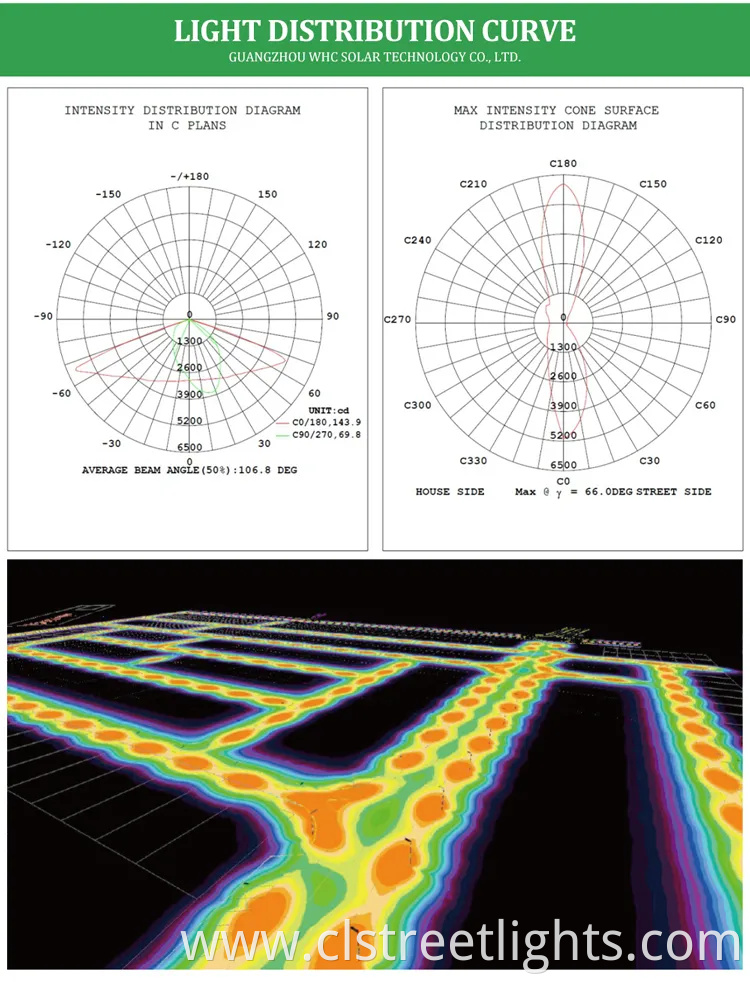

TECHNICAL PARAMETERS
HOT SALE PRODUCTS
COMPANY PROFILE

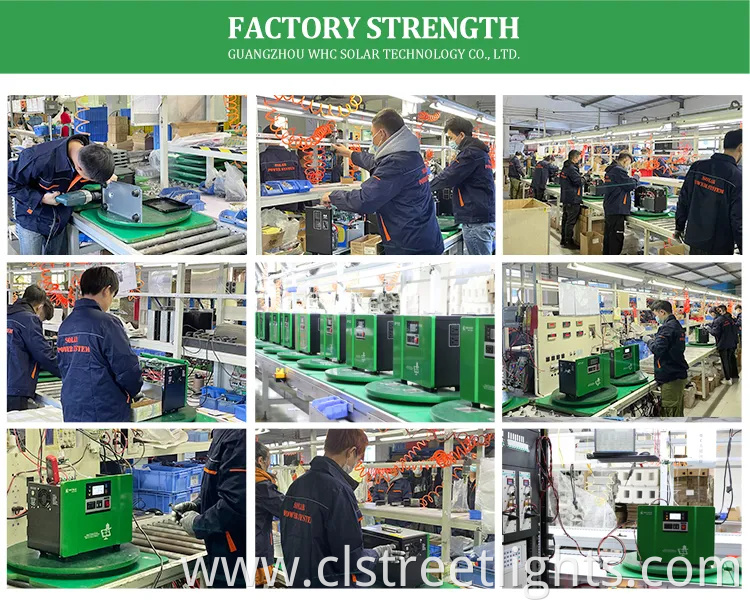

FACTORY STRENGTH
Product Categories : Solar Street Light > All In Two Solar Street Light
