Home > Products > Solar Panel > Solar Panel Module Price for Energy Storage System
Solar Panel Module Price for Energy Storage System
  • Solar Panel Module Price for Energy Storage System
  • Solar Panel Module Price for Energy Storage System
  • Solar Panel Module Price for Energy Storage System
  • Solar Panel Module Price for Energy Storage System
  • Solar Panel Module Price for Energy Storage System
  • Solar Panel Module Price for Energy Storage System
  • Solar Panel Module Price for Energy Storage System

Solar Panel Module Price for Energy Storage System

Min. Order:
1 Piece/Pieces
Share:
  • Product Description
< >
Overview
Product Attributes

Model NO.: RSM700M-132HC

Number Of Cells: 132cells

Application: Solar Energy System Projects

Condition: New

Certification: EST, ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet

Material: Monocrystalline Silicon

Product Name: 700W Solar Panels

Frame: Silver/Black Anodized Aluminium Alloy

Junction Box: IP68 Rated, 3 Diodes

TPT Back Sheet: Black/White Backsheet

Cells: 210/182/166/158.75mm

Cable: 4mm2 Symmetrical Lengths

System Voltage: 1000V/1500VDC

Connector: Compatible Mc-4/Male/Female/Fuse

Glass: 3.2mm High Transmission Tempered Glass

Transport Package: Rosen Design Standard Carton on Pallets

Specification: 2384*1303*35mm opt

Trademark: Rosenpv or OEM

Origin: China

HS Code: 854143

Production Capacity: 500000watts/Day

Customization: Available

After-sales Service: Yes

Warranty: 25 Years

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Supply Ability & Additional Information

Supply Ability: 500000watts/Day

Packaging & Delivery
Selling Units:
Piece/Pieces

Basic Info.

Model NO.
RSM700M-132HC
Number of Cells
132cells
Application
Solar Energy System Projects
Condition
New
Certification
EST, ISO, CB, CE, TUV, VDE, IEC61215, IEC617, Pid, Cec, Jet
Material
Monocrystalline Silicon
Product Name
700W Solar Panels
Frame
Silver/Black Anodized Aluminium Alloy
Junction Box
IP68 Rated, 3 Diodes
Tpt Back Sheet
Black/White Backsheet
Cells
210/182/166/158.75mm
Cable
4mm2 Symmetrical Lengths
System Voltage
1000V/1500VDC
Connector
Compatible Mc-4/Male/Female/Fuse
Glass
3.2mm High Transmission Tempered Glass
Transport Package
Rosen Design Standard Carton on Pallets
Specification
2384*1303*35mm opt
Trademark
Rosenpv or OEM
Origin
China
HS Code
854143
Production Capacity
500000watts/Day

Packaging & Delivery

Package Size
200.00cm * 150.00cm * 180.00cm
Package Gross Weight
200.000kg

Product Description

Product Description
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage SystemRosen Solar, with more than 4 automatic lamination lines, are professional manufacturer of solar panels with wide power range from 5w to 300W, 450W, 550W, 600W, 650W, 680W, 700W, 800W etc. Solar panels, like PERC, N-Type TOPCON, HJT, Shingle types etc and bifacial/double glass, single glass, full black, black frame, and frameless half cell panels Mono and Polycrystalline panels, are all available in China and Europe stock. Tier 1 panels brands like Trina, JA, Jinko, Tongwei etc are available too. OEM and ODM service acceptable with the min one pallet. We have all certificates like TUV, CE, ISO, IEC etc, And technicians will provide manuals, and installation CAD SKETCH designs for roof or ground installation.
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System

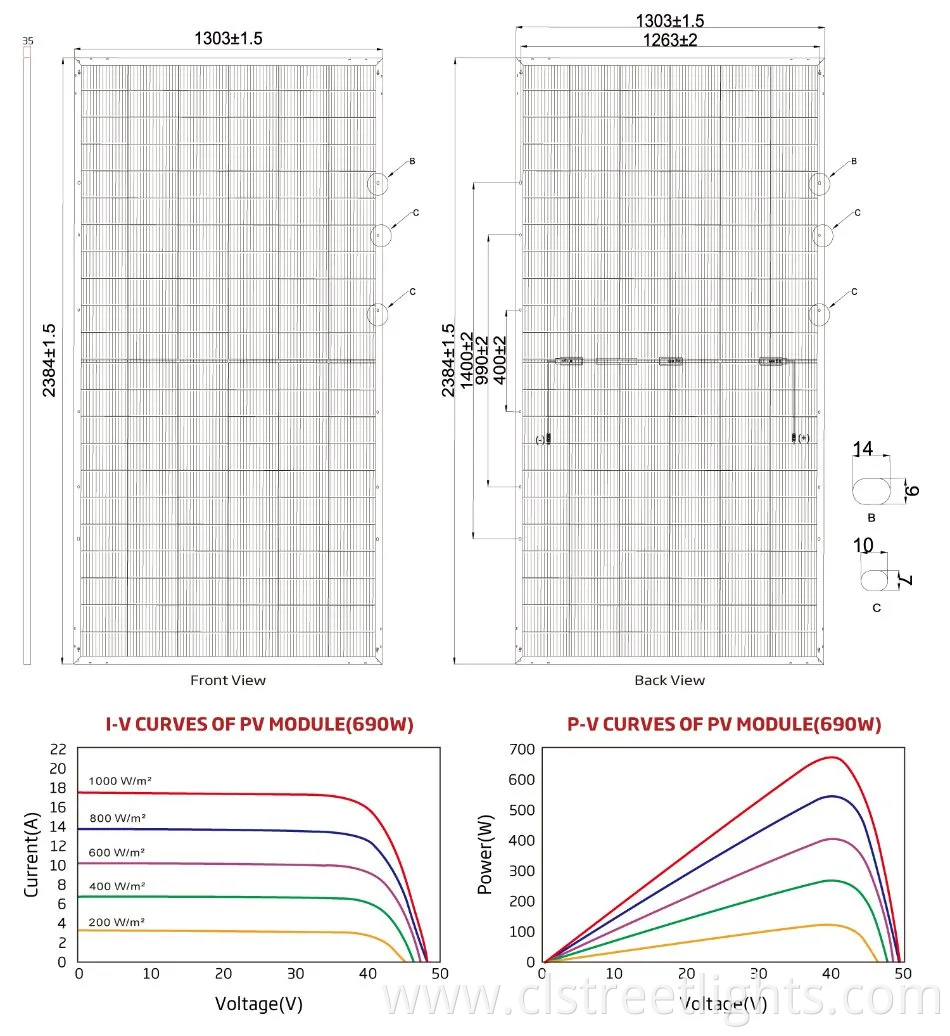

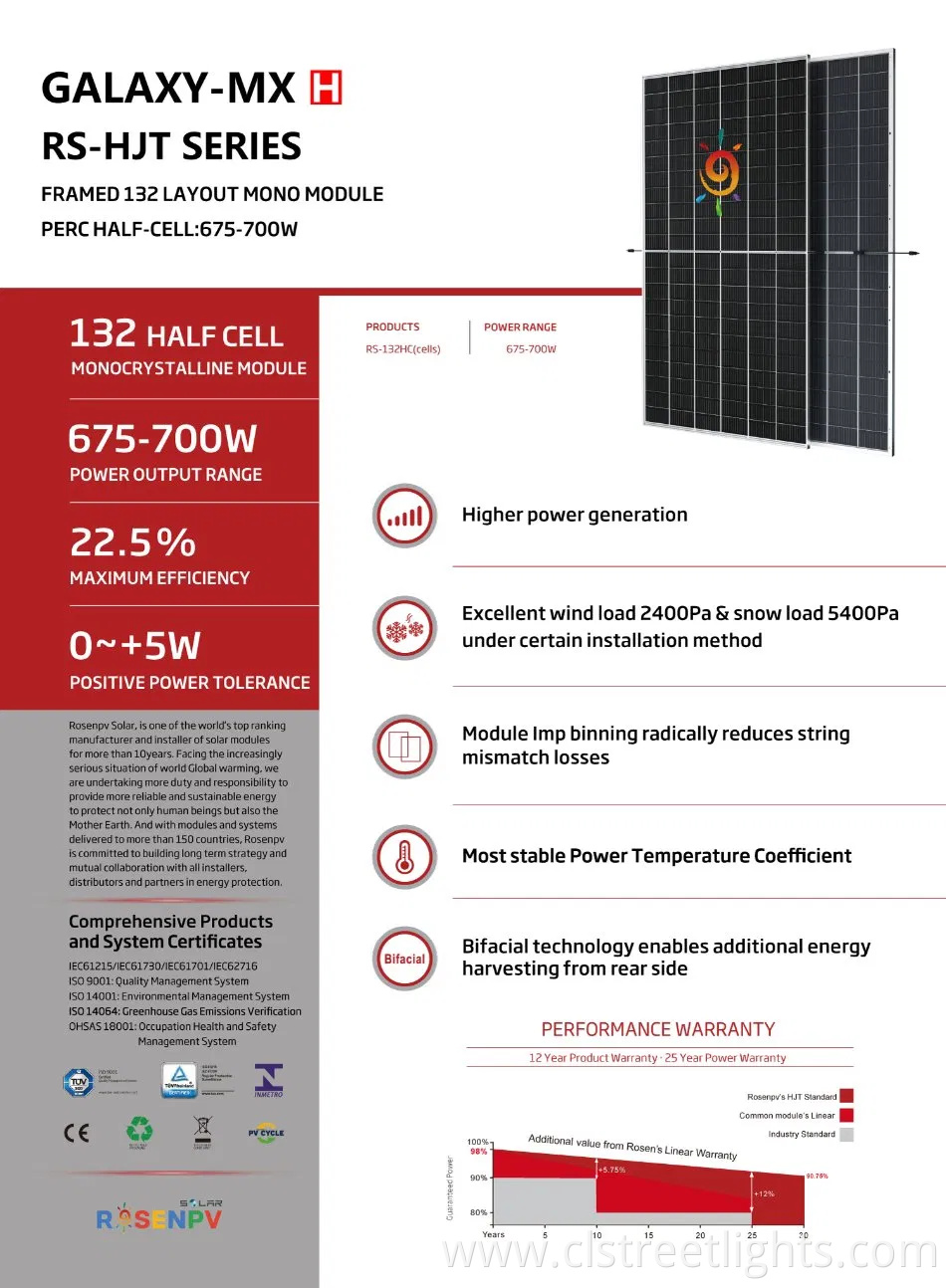

Technical Specification Data(STC) of Solar Panel
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System
Model
RSM680-132HJT
RSM685-132HJT
RSM690-132HJT
RSM695-132HJT
RSM700-132HJT
Rated Maximum Power at STC
680W
685W
690W
690W
700W
Maximum Power Voltage(Vmp/V)
41.49
41.65
41.80
41.95
42.10
Maximum Power Current(Imp/A)
16.39
16.45
16.51
16.57
16.63
Open Circuit Voltage(Voc/V)
49.50
49.66
49.82
49.98
50.13
Short Circuit Current(Isc/A)
17.19
17.25
17.31
17.37
17.43
Module Efficiency(%)
21.89
22.05
22.21
22.37
22.53
Standard Test Condition(STC)
Irradiance 1000w/m², Cell Temperature 25ºC, Air Mass AM1.5
ELECTRICAL DATA(NOCT)
Maximum Power-PMAX (Wp)
750W
756W
761W
767W
772W
Maximum Power Voltage(Vmp/V)
41.49
41.65
41.80
41.95
42.10
Maximum Power Current(Imp/A)
18.08
18.16
18.21
18.29
18.34
Open Circuit Voltage(Voc/V)
49.50
49.66
49.82
49.98
50.13
Short Circuit Current(Isc/A)
18.96
19.04
19.09
19.17
19.22
NOCT: Irradiance at 800W/m², Ambient Temperature 20°C, Wind Speed 1m/s.
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System

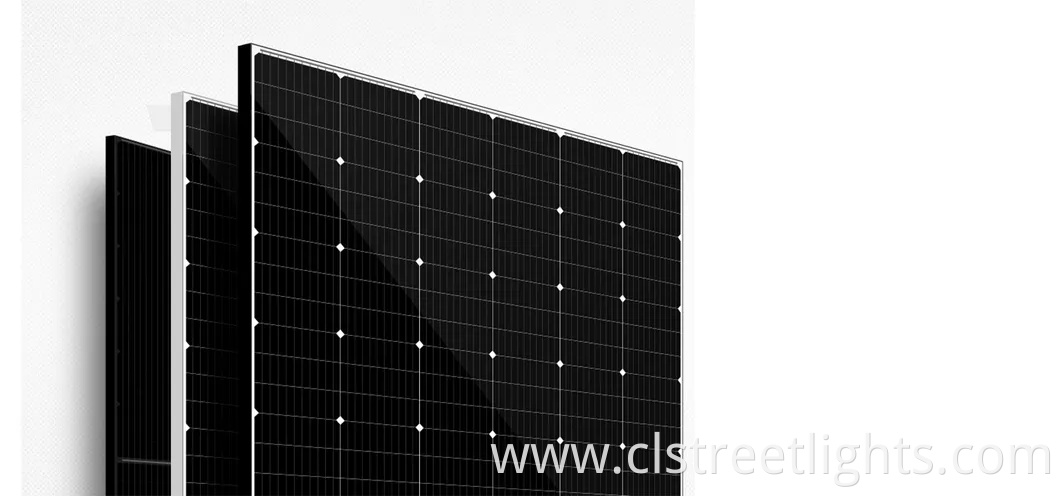

Detailed Images of Solar Panel
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System

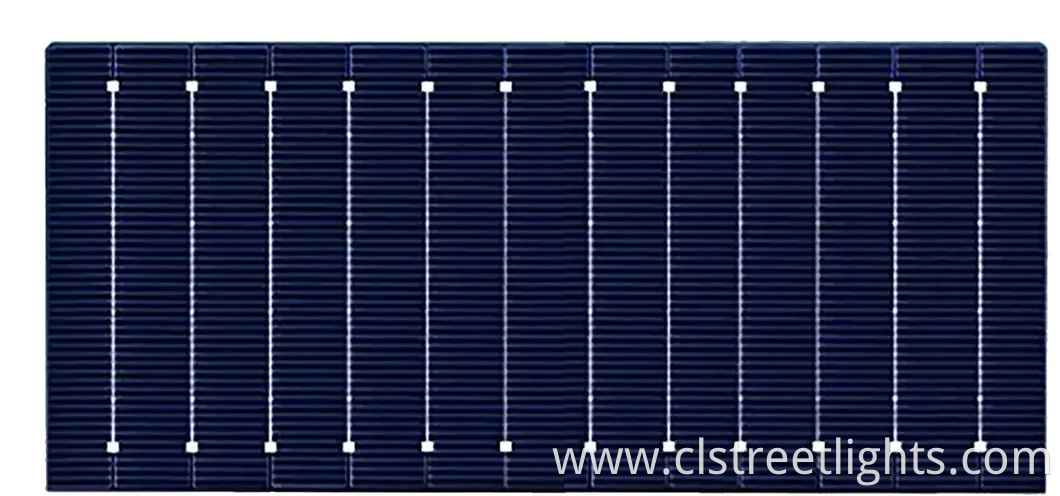

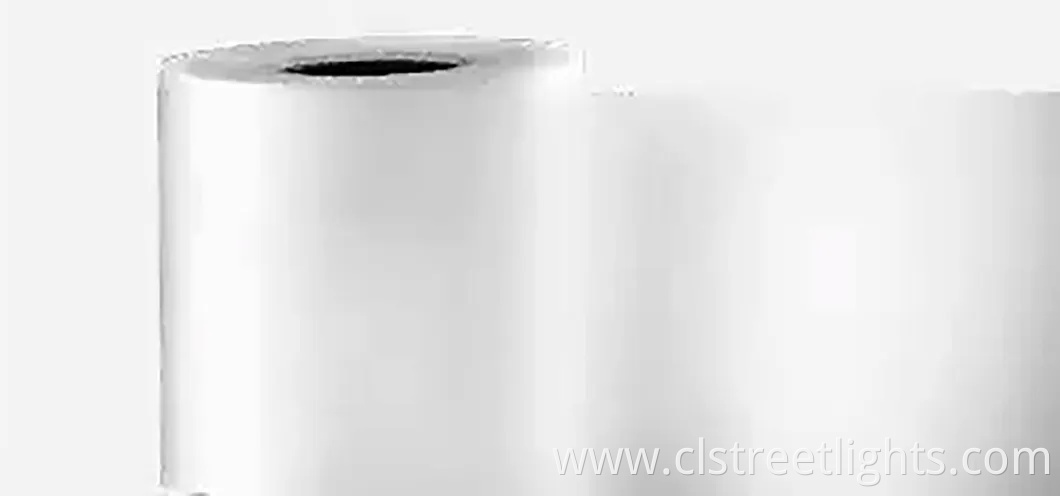

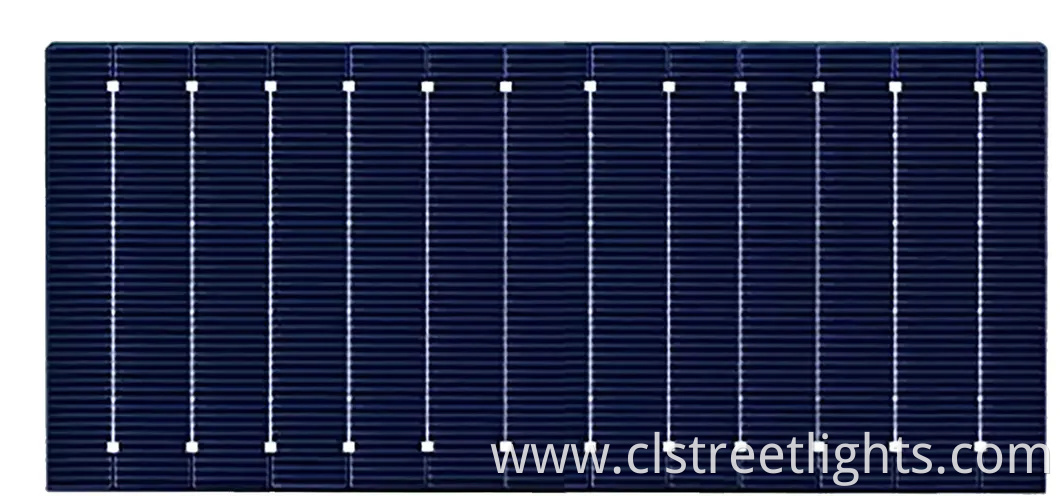

     EVA                                                                                        Solar Cell                                                                         Frame

     High Transmittance EVA,High GEL Content To                      5BB, 6BB, 9BB, 10BB, 12BB Available                            35mm 40mm Anodized Aluminium
     Provide Good Encapsulation And Protect Cells                     158.75cells, 166cells, 182cells,210cells                           Alloy
     From Vibration With Longer Durability.                                   High Efficiency Cells Anti-Pid                                           Black/Silver Color Optional

Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System

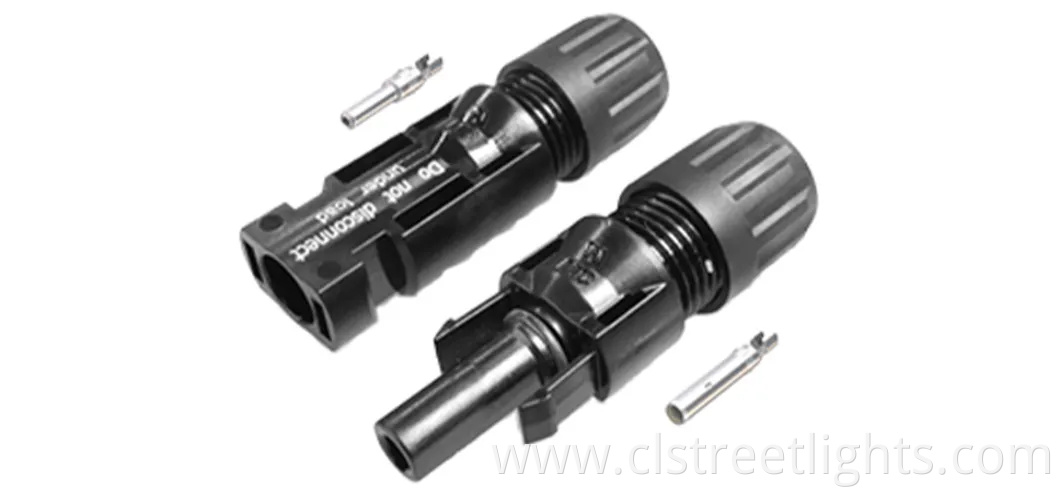

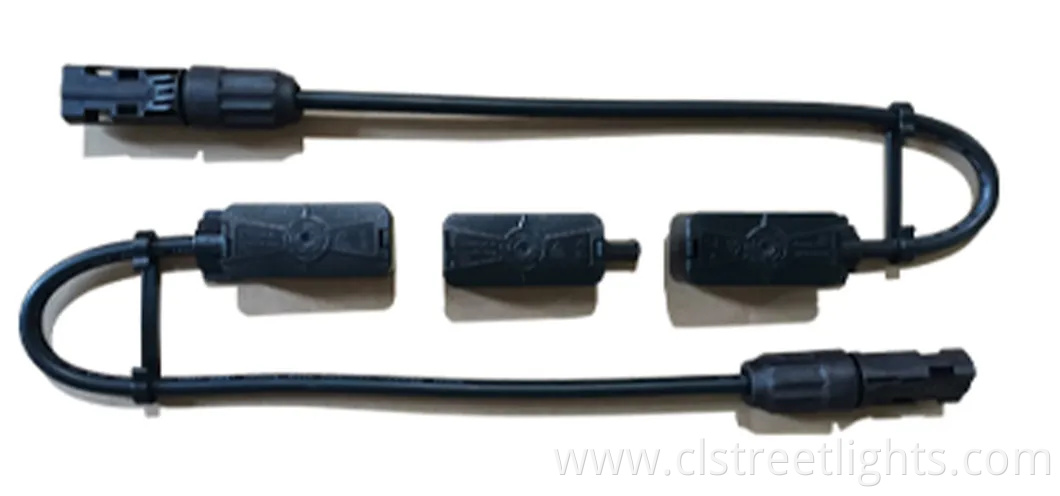

     Junction--Box                                                                       Compatible MC4                                                            Label

     IP 68 rated Waterproof                                                           MC4 Compatible /MC4 EVO2/TS4*                                Waterproof Customized Label
     Innovative Full-Glue-Filled                                                     500N Tensile Strength                                                     OEM/ODM with your Logo
     Portrait/Landscape Length Optional                                      Female/Male/Fuse                                                           Professional Silver Color

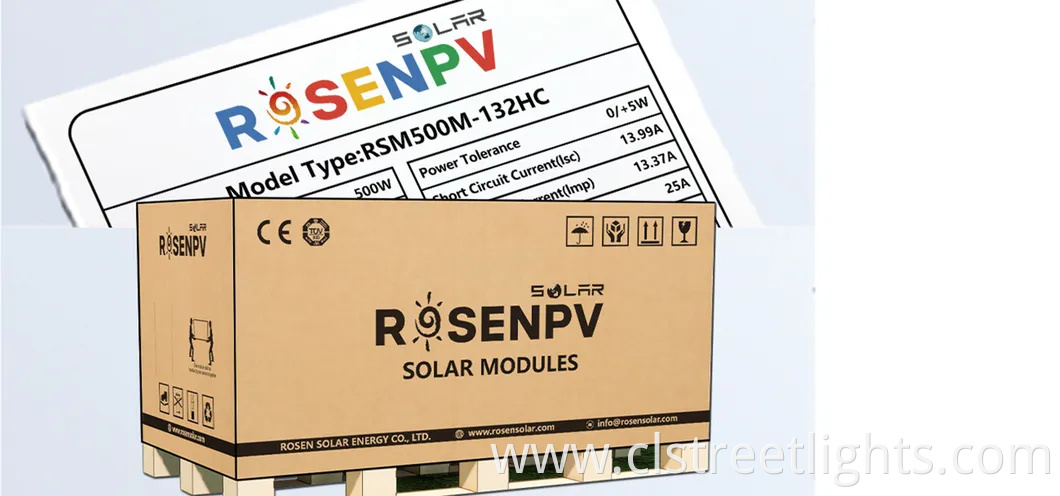

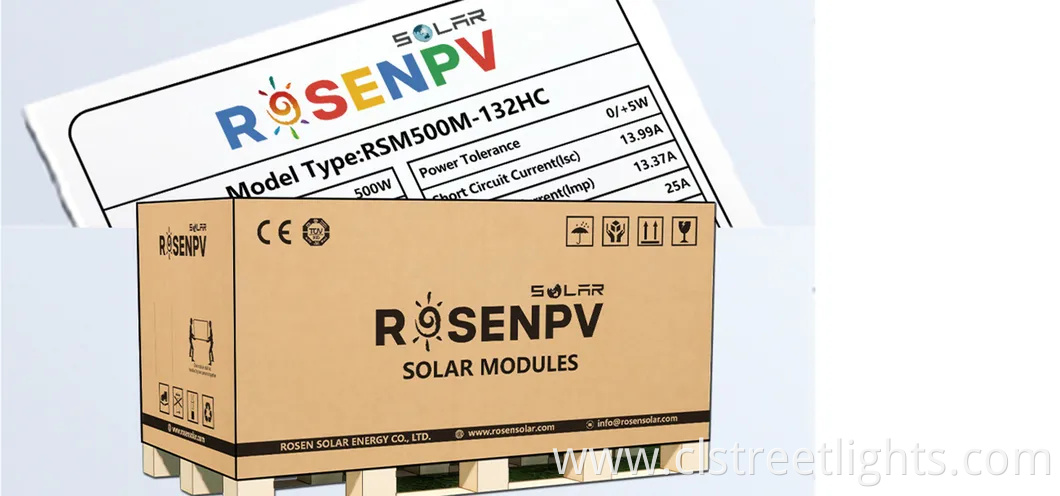

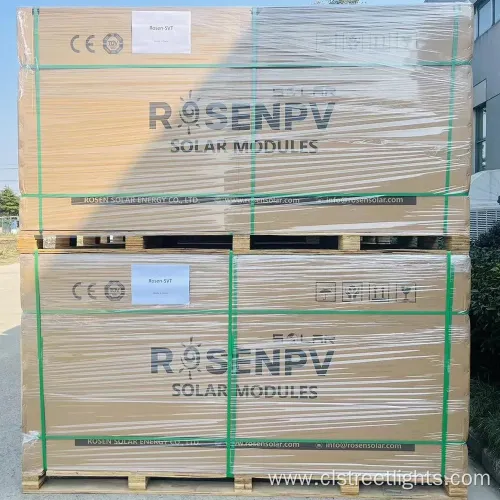

Packing & Delivery
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage SystemPacking Details : In carton on pallet or wooden box, OEM with your logo available
Delivery Details : 5-10 working days

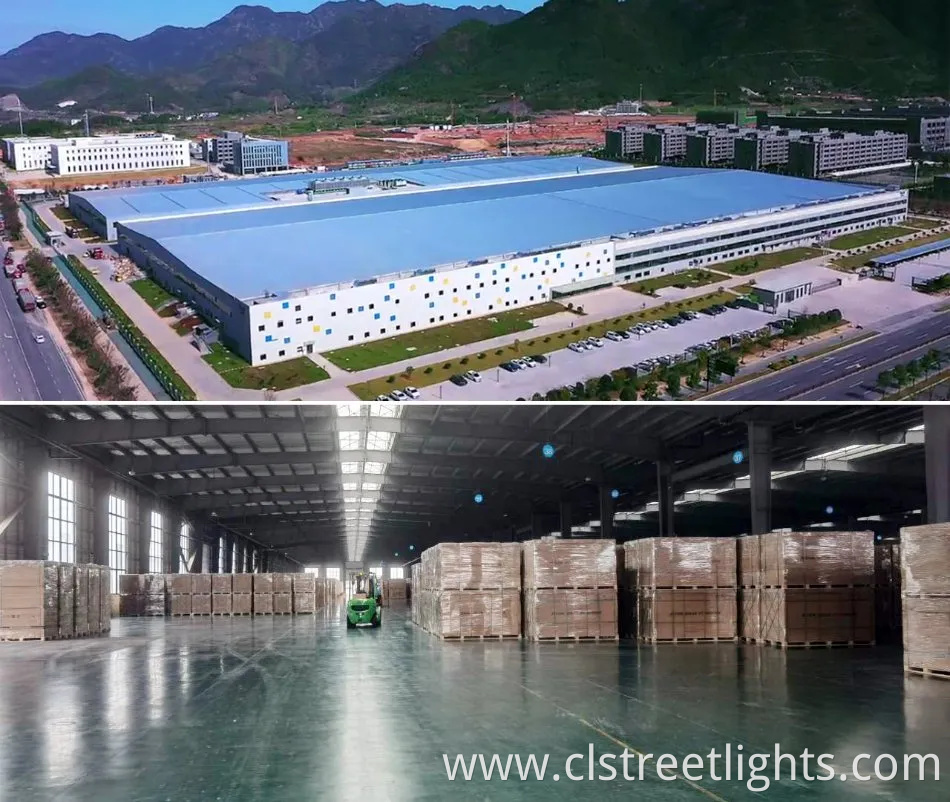

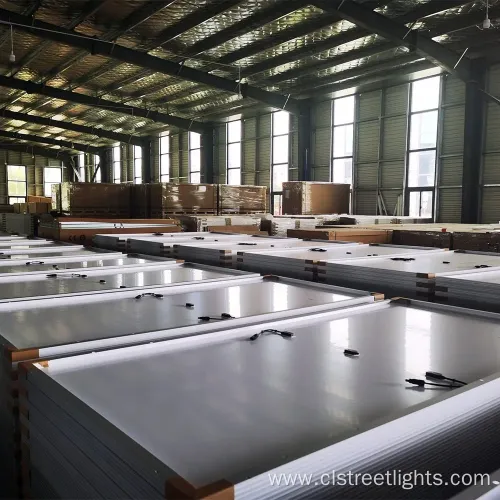

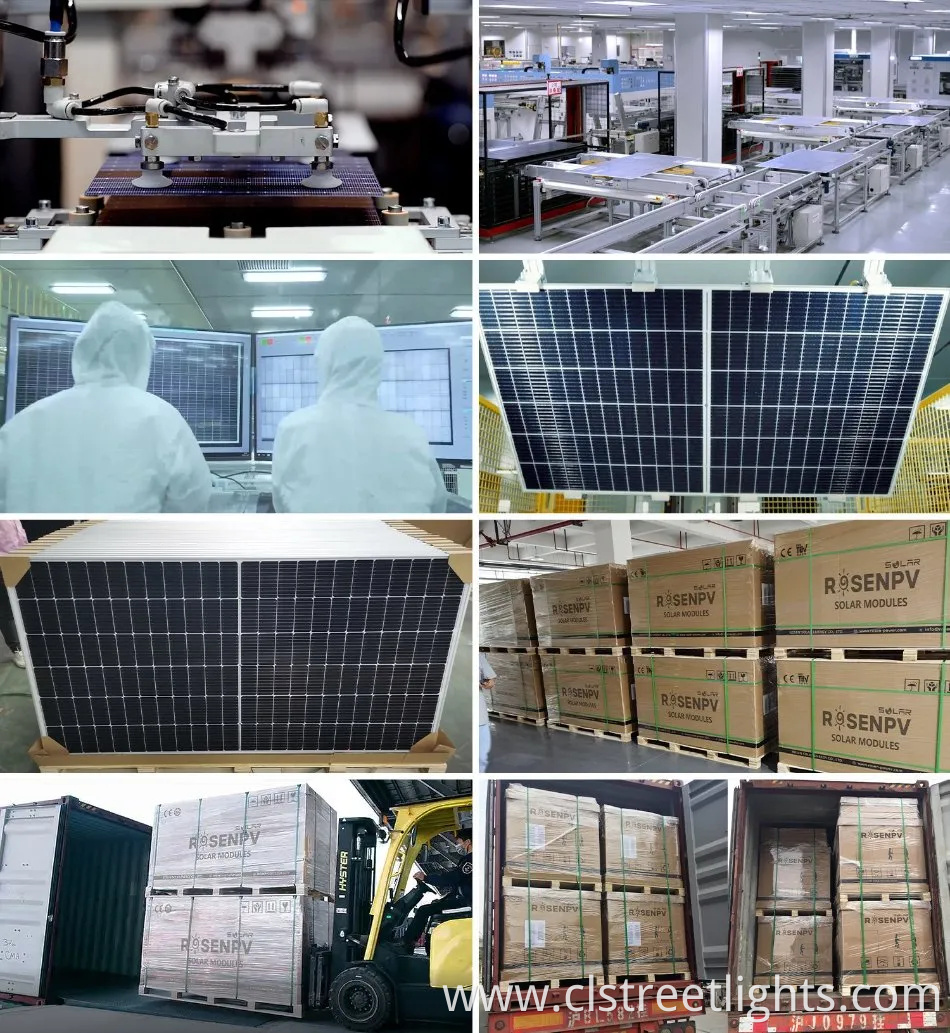

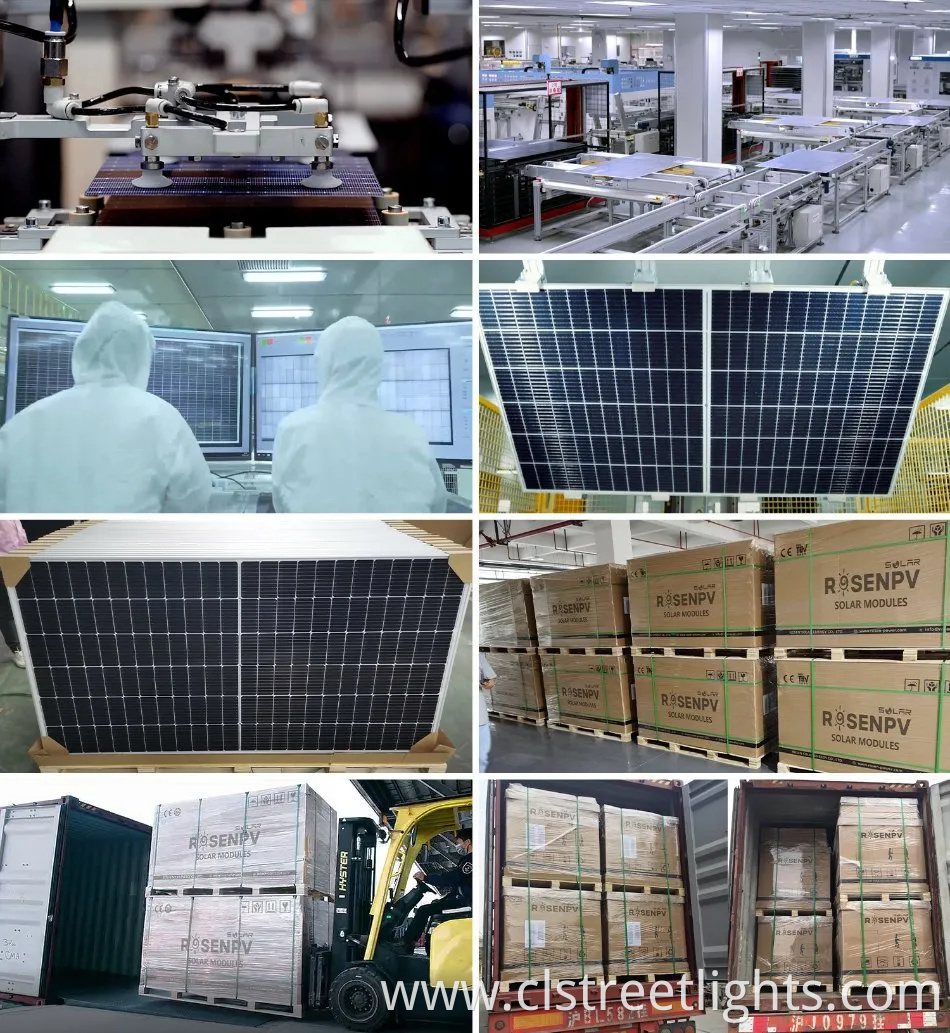

Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage SystemFactory & Stock
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System

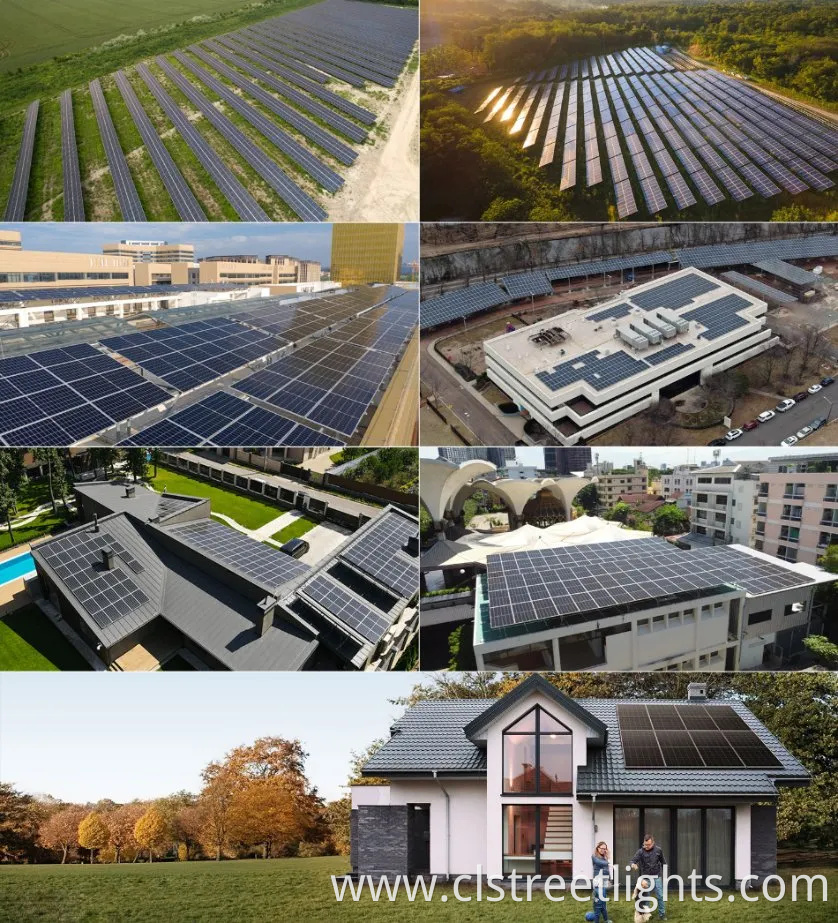

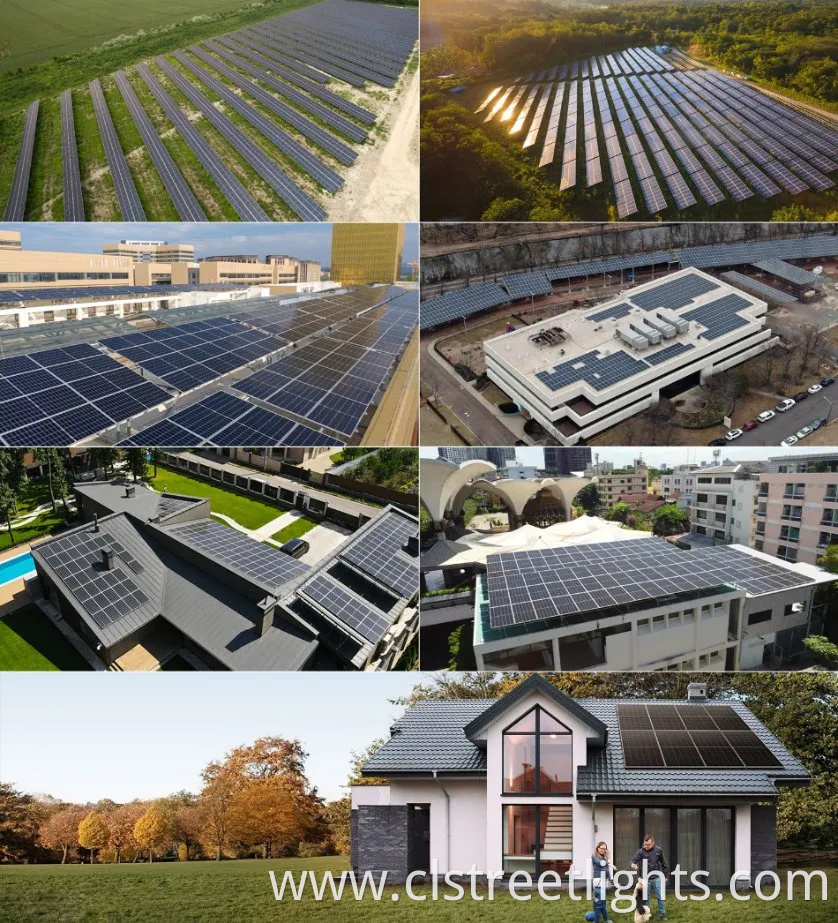

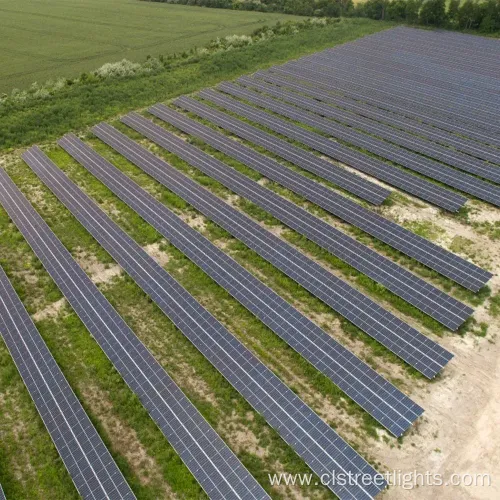

Projects
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage SystemRosen projects are installed around the world for home, commercial and industrial use. Home Lithium battery hybrid solar systems are more installed
for roof mounting with solar panel power range 3kw, 5kw, 8kw, 10kw, 15kw, 20kw, 30kw etc, lithium batteries ESS BESS with power wall, rack mount
and continerized ESS types.Commercial projects are more On Grid systems like 50kw, 100kw, 150kw, 200kw, 300kw Grid tied for cement or soil ground
mounting.Industrial projects for tender EPC like 1MW, 2.5MW, 3MW, 5MW, 10MW etc.  Usually we have solar panels PERC, bifacial and black types in stock.
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage System
Our Support
Mono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage SystemMono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage SystemMono 700W 800W Solar Panels Photovoltaic Solar Module Price for Energy Storage SystemF&Q:
1, Introduction of photovoltaic PV
A photovoltaic system employs solar modules, each comprising a number of solar cells, which generate electrical power. PV installations may be ground-mounted, rooftop-mounted, wall-mounted or floating. The mount may be fixed or use a solar tracker to follow the sun across the sky.

2, What's solar panel?
A solar panel is a device that converts sunlight into electricity by using photovoltaic (PV) cells. PV cells are made of materials
that generate electrons when exposed to light. The electrons flow through a circuit and produce direct current (DC) electricity,
which can be used to power various devices or be stored in batteries. Solar panels are also known as solar cell panels, solar electric panels, or PV modules.

3, Do you have Bloomburg Tier 1 solar panels brands available?
Yes, firstly we are using tier 1 solar cells, and we have in stock of many tier 1 brands like TW, JA etc.

4, What types of solar panels you are making now?
Nowadays the most installed types of panels are TOPCON N type, with Bifacial(double face), Monofacial, and black etc; also the cells efficiency is much higher, 182mm and 210mm cells up to 12bb 18bb and 20bb(bus bar) to 700W, 800W power each panel. Other types like PERC, HJT, BC are under production too.

5,How do you pack the solar panels?
Usually we'll pack the pv panels in carton on pallets, standard shipment with 31pieces each package. If you need long time
shipment, wooden box package is ok too.

6, Which types of solar panels do you use for solar system ?
"PERC or N- type Topcon are all available,hot selling items are 410W, 450W, 550W, 620W, 650W and 700w solar panels etc. All are compatible with the whole PV system"

7, How many years warranty? And do you accept OEM/ODM?
We offer 25 to 30years of warranty for the solar panels. And yes, we can do OEM/ODM with your company label design on panels backsheet or cartons.
8, For further information, please leave a message or call us directly ↓↓↓
