Model NO.: YD-TYN-X
Light Source: LED Lamp
Lamp Body Material: Aluminum
Light Type: Solar
Color Temperature: Cool White
Power: 100W
Technics: Electroplating
Illumination Time: 12h
Charging Time (h): 4
Usage: Garden, Street
IP Rating: IP65
Certification: ce, rohs
Voltage: 12/24V
With Light Source: With Light Source
LED Junction Temperature: <60ºC
LED Luminous Efficienty: ≥140 Lm/W
The Initial Light Flux: 4200-12600 Lm
Color Rendering: Ra>75%
Wind Index: Level 12
Distribution Curve: Bat Wing
Lamp Life: >50000h
Working Mode: Daylight Control + Remote Control
Solar Panel: Monocrystalline Solar Panel
Material: Aluminium Alloy + Tempered Glass
Pole′s Height: 6-12m
Transport Package: Carton, Wooden Case
Trademark: Quicklite
Origin: Yangzhou Jiangsu
HS Code: 9405409000
Production Capacity: 5000 Piece/Pieces Per Month
Customization: Available
After-sales Service: 3 Years
Warranty: 3 Years
Supply Ability: 5000 Piece/Pieces Per Month

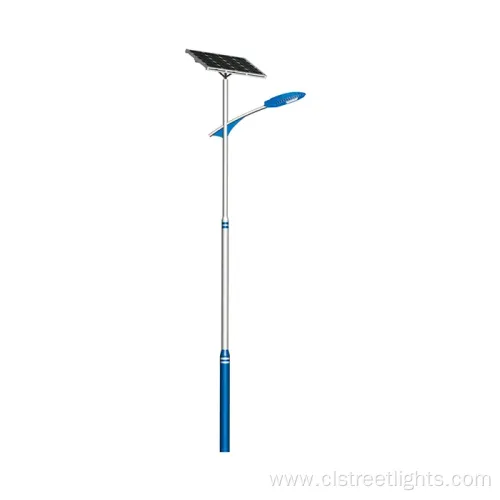

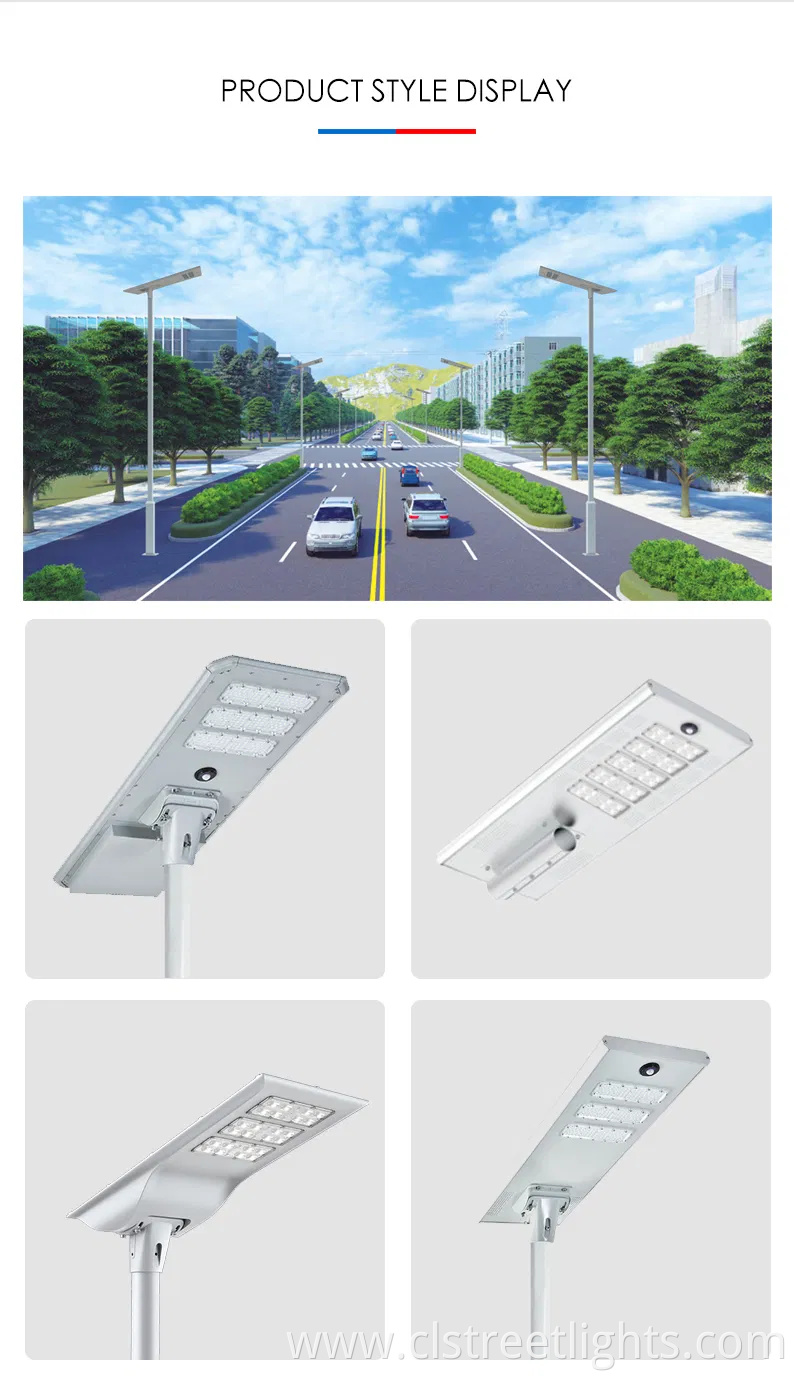

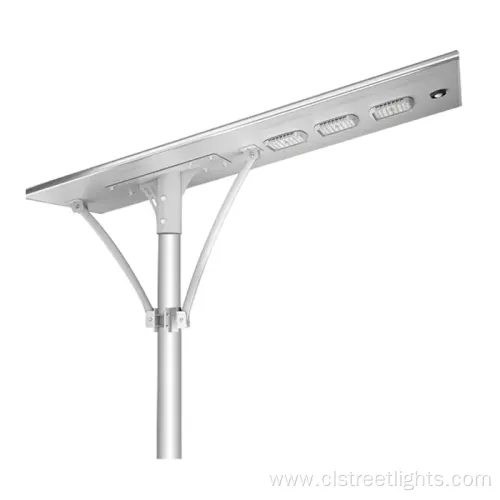

All-in-One Solar Street Light
Solar Street Lights are easy to install and ideal for residential streets, gardens, parking lots, playgrounds, and security or landscape lighting. Unlike traditional lighting systems that require extensive trenching and wiring, solar Street Lights are energy-efficient, environmentally friendly, and require no wiring. They are durable, cost-effective, and simple to install.

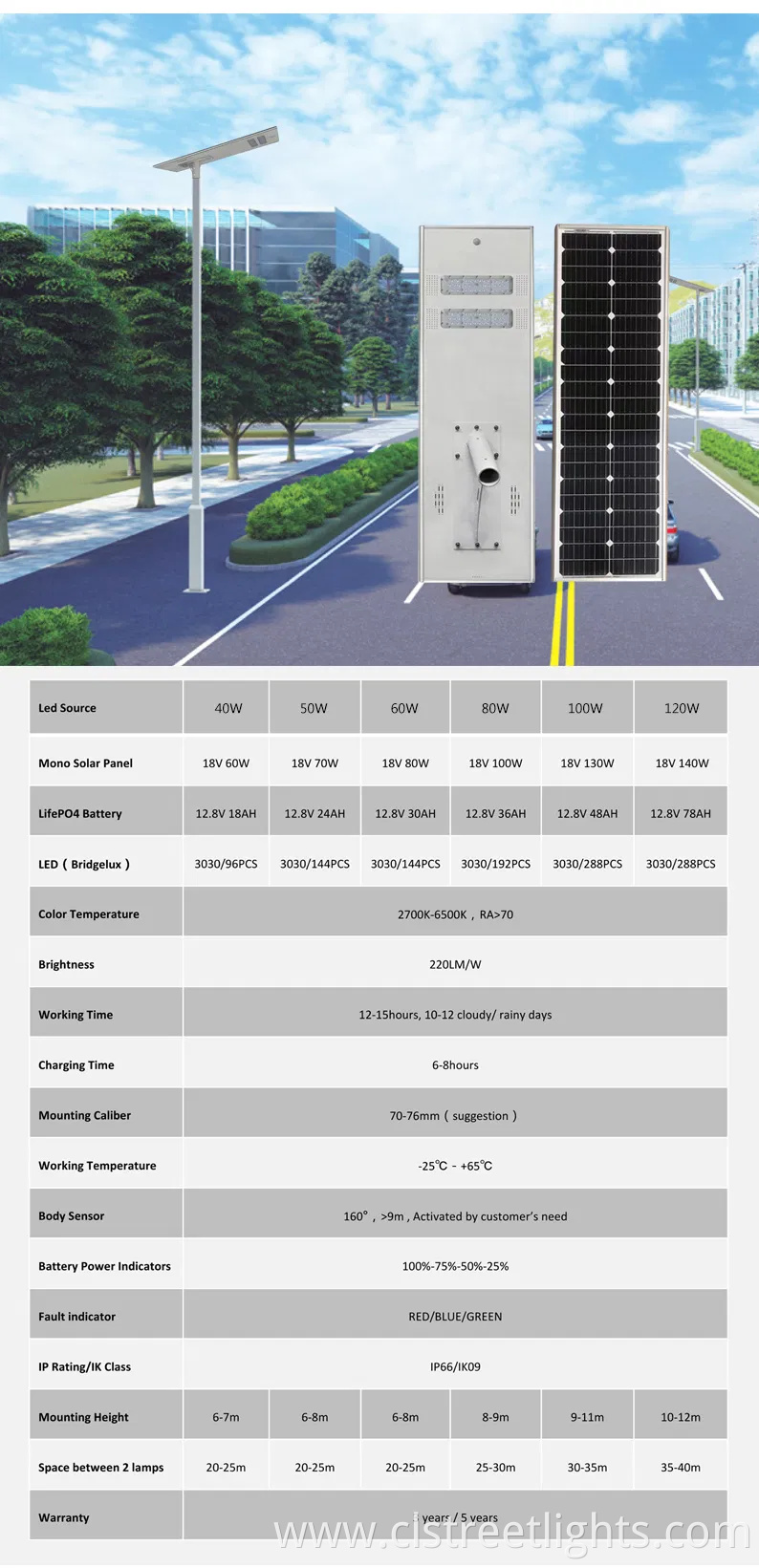

| Product Type | ||||||
| Model | 30w | 40W | 60W | 80W | 100W | 120W |
| LED Brand | 3030 | 3030 | 3030 | 3030 | 3030 | 3030 |
| LED QTY(PCS) | 72 | 108 | 144 | 256 | 256 | 384 |
| Power of PV Module | 18V 60W | 18V 70W | 18W 90W | 18V 110W | 36V 12W | 36V 160W |
| LiFePO4 Battery | 12.8v 380wh | 12.8v 460.8wh | 12.8v 537.6wh | 25.6v 768wh | 25.6v 921.6wh | |
| Light Mode | PIR/Time Control | Time Control | ||||
| Product Weight | 12KG | 14KG | 17KG | 22KG | 24KG | 32.8KG |
| Product Size(mm) | 753*373*60 | 893*373*60 | 1123*373*60 | 1173*423*60 | 1413*423*60 | 1713*373*60 |
| Light Parameter | ||||||
| Light Powder | 30W | 40W | 60W | 80W | 100W | 120W |
| Tyical Liminous Flux(lm) | 5400 | 7200 | 10800 | 14400 | 18000 | 21600 |
| LED Light Effect | 200lm/w | |||||
| Color Temperature | 2700-6500 | |||||
| Beam Angle | 150°*80° | |||||
| Warranty | 5 Years | |||||
| Environment Parameter | ||||||
| Charging Temperature | 0ºC to +60ºC | |||||
| Discharging Temperature | -20ºC to 60ºC | |||||
| Storage Temperature | -20ºC to 45ºC | |||||

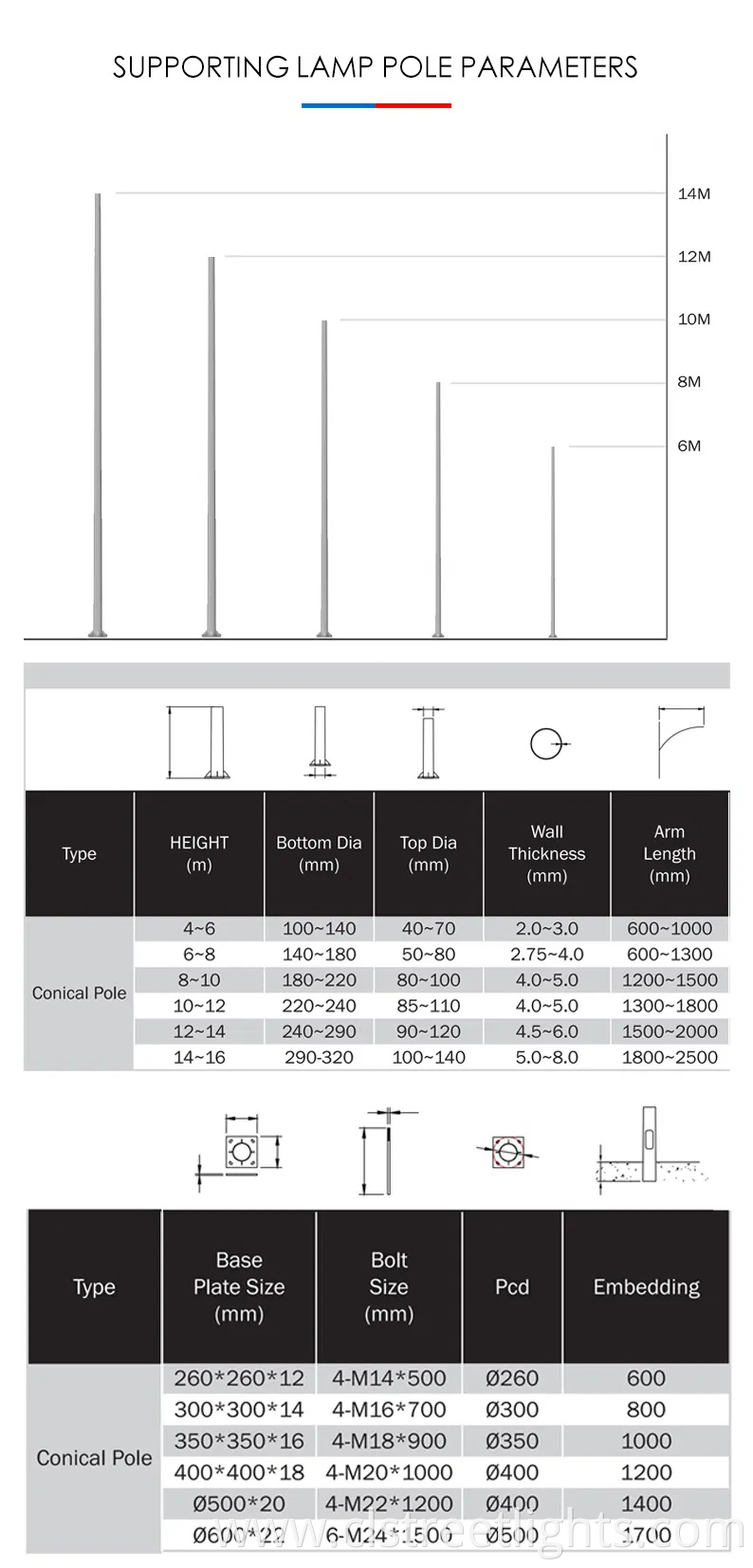

| Installations | ||||||
| Dia.of Top Pole | 50-60mm | 70-80mm | 90-100mm | |||
| Installation Height | 4-6m | 5-7m | 6-8m | 8-10m | 9-11m | 10-12m |
| Installation Distance | 15-25m | 20-30m | 25-35m | 30-40m | 35-45m | 40-50m |

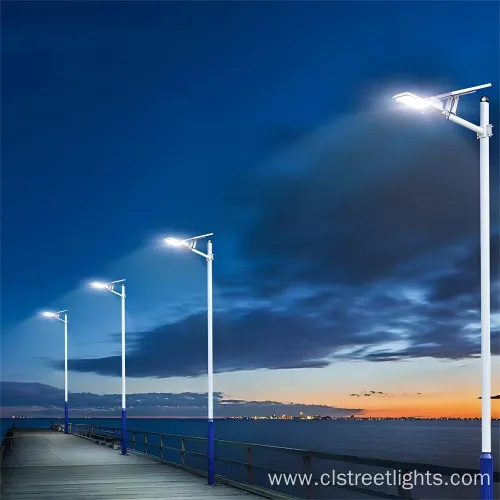

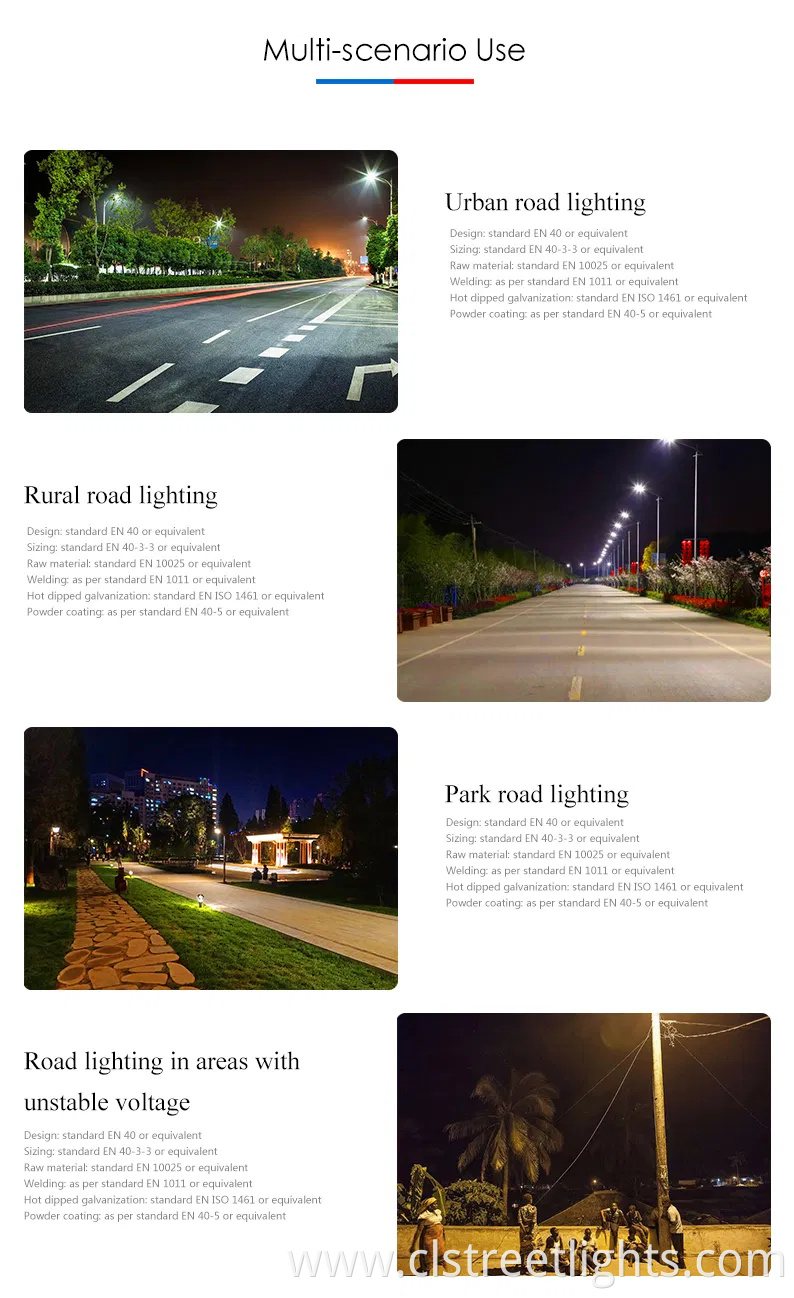

Applications
Solar Street Light Solar Road Light Solar Path Light
Solar Parking Lot Light Solar Driving way Light Solar Highway Light
Solar Freeway Light Solar Avenue Light Solar Sidewalk Light
Solar Remote Area Light Solar Bases Light Solar Security Light
Solar Garden Light Solar Park Light Solar Gate Light
Solar Grave Light Solar Entrance Light Solar Fence Light
Solar Campus Light Solar Boat Dock Light Solar Pedestrian Street Light
Solar Jogging and Bike Path Light

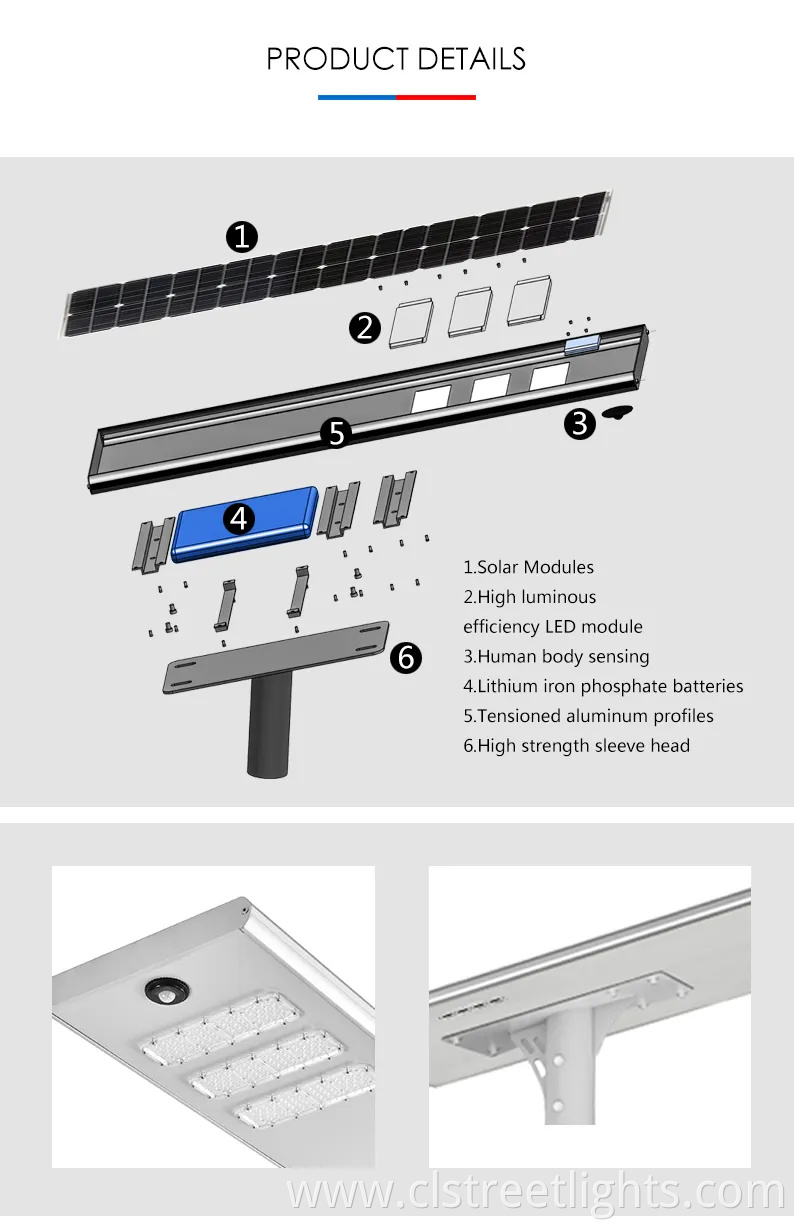

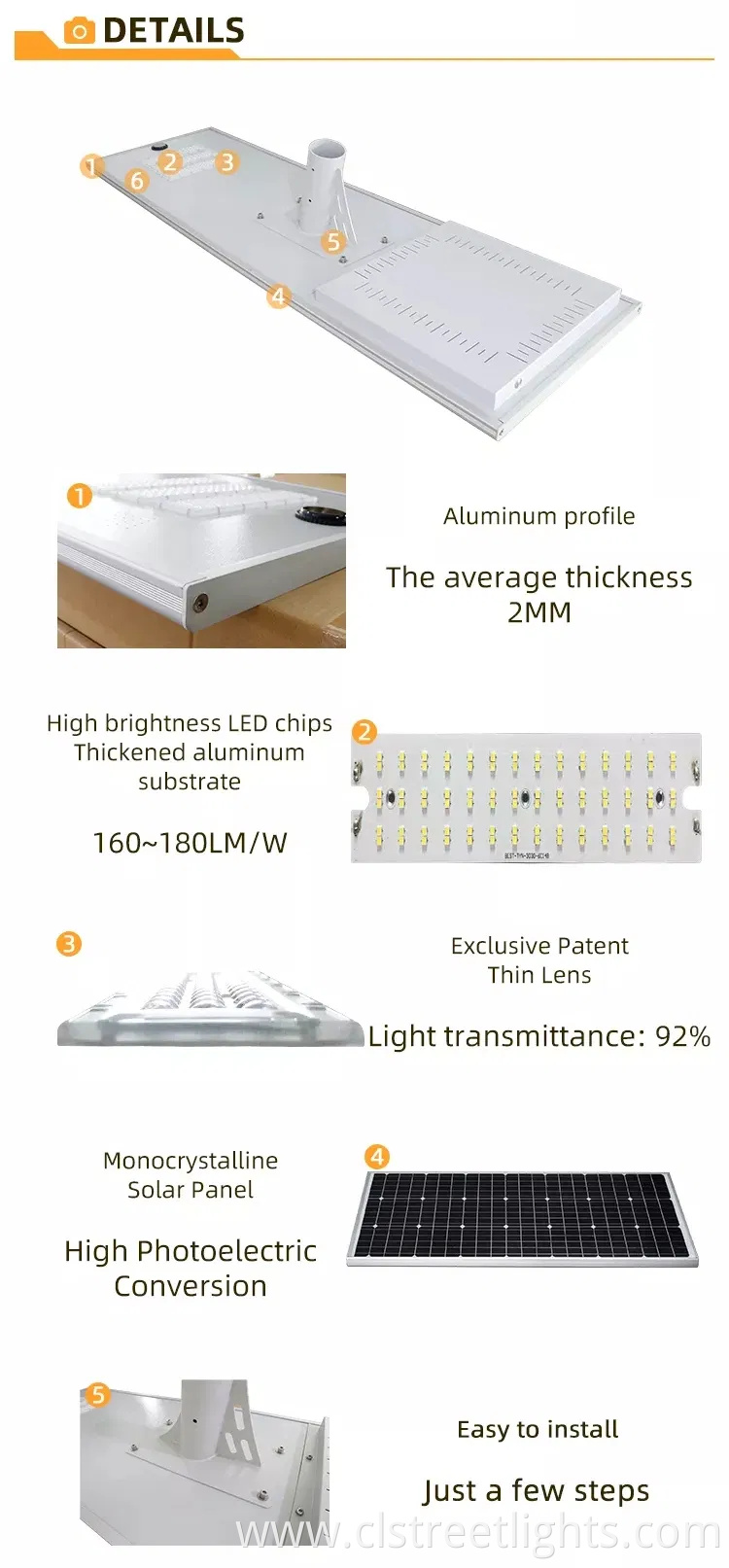

| Key Features
|

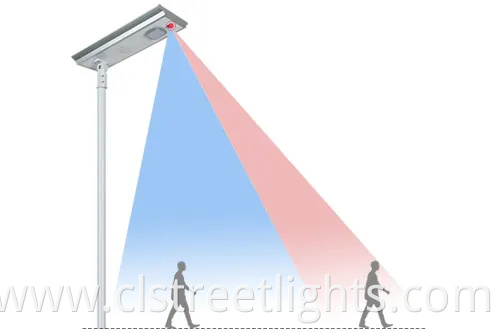

Radar Sensing Technology
Lights fully illuminate when motion is detected within the sensing range.
Lights dim to half-brightness after the area is vacated.
Solar Charging Process
Solar charging during the day.
Full brightness when motion is detected.
Semi-bright state when no motion is detected.

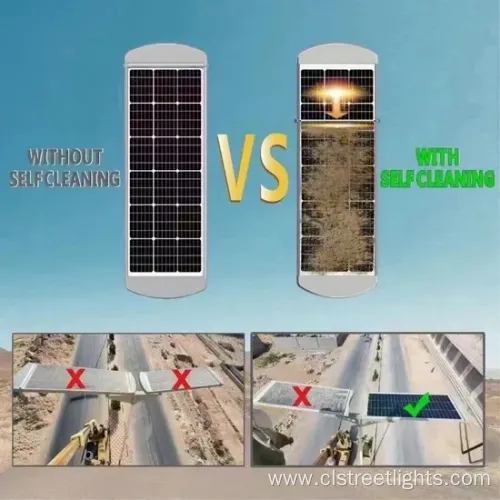

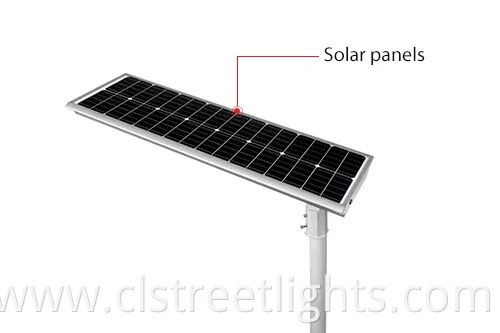

Monocrystalline Solar Panels
High photoelectric conversion efficiency and reliability.
Advanced diffusion technology ensures uniform conversion efficiency.
Excellent conductivity and durability.
Tempered glass packaging for long-lasting performance.
